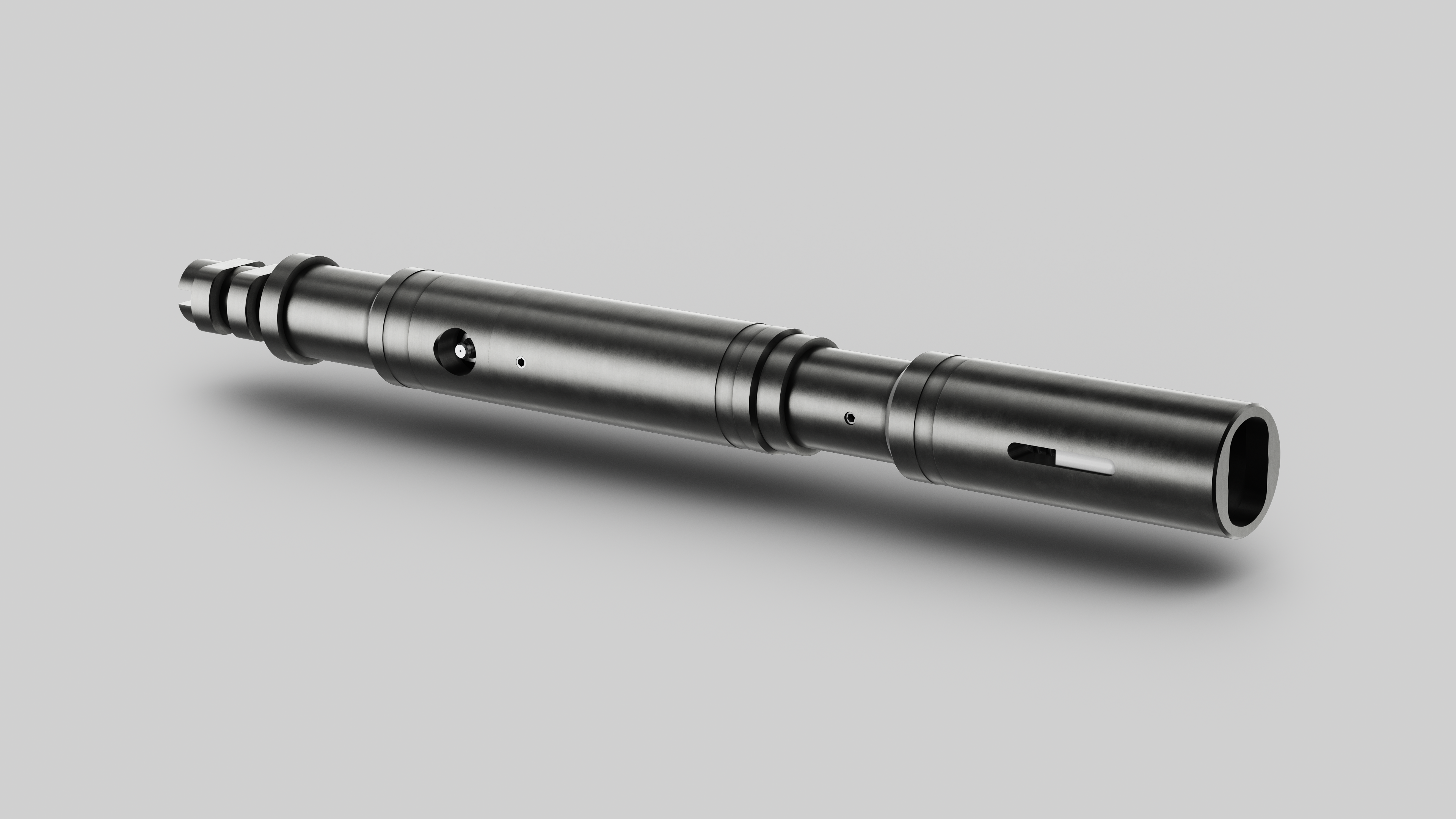

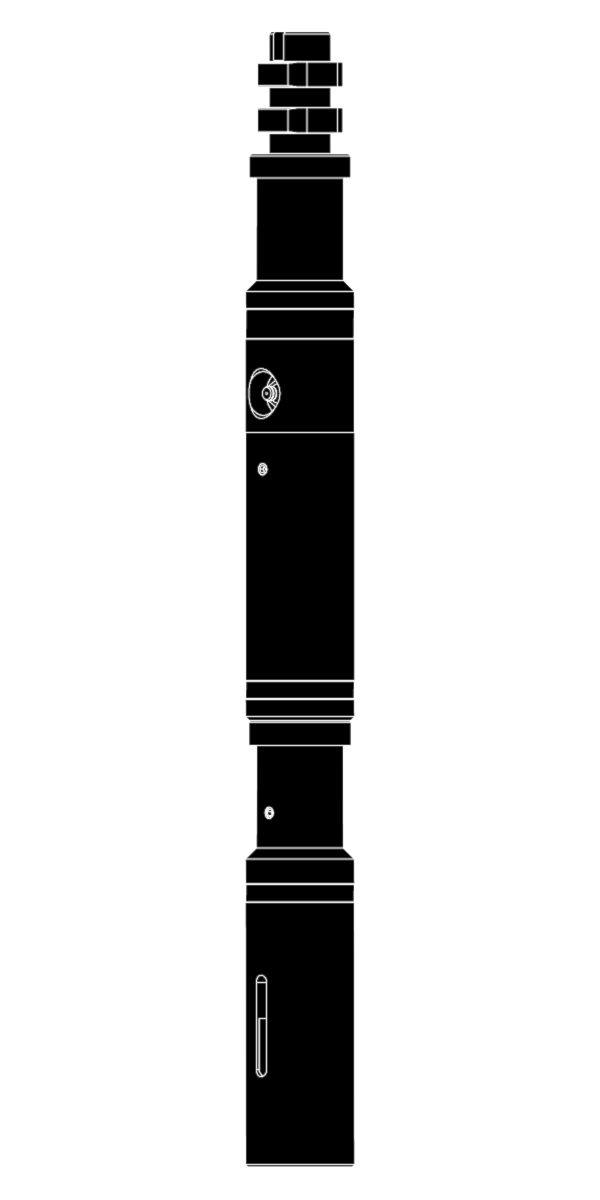

The LiMAR Swivel Joint is designed to allow a toolstring to rotate freely when suspended under load.
Designed to avoid the build-up of line torque the positioning of the LiMAR® Swivel within the toolstring is generally directly below a braided or slickline rope socket.
TOOL APPLICATIONS:
- To enable a toolstring to rotate freely under load to prevent torque build-up in the wireline
DESIGN FEATURES & BENEFITS:
- Supplied with contingent fish neck
- Hard wearing phosphor bronze bushings to enhance tool rotation and prolong working life
- Integral grease nipple for ease of maintenance and operation
- Connection options to suit customer requirements
- Simple, robust design ensuring ease of operation for the end user
- Selected components QPQ treated
- Hexagonal flats for safe make-up & break-out
TECHNICAL DATA
| Assembly Part No. | Actual OD | Fish Neck | Connection | Contingent Fish Neck | Make up Length |
| 1053-1250-XXX-RX | 1.250" | 1.187" | Optional | 1.187" | 13.84" (LQK) |
| 1053-1500-XXX-RX | 1.500" | 1.375" | Optional | 1.375" | 15.00" (LQK) |
| 1053-1750-XXX-RX | 1.750" | 1.375" | Optional | 1.375" | 16.69" (LQK) |
| 1053-1875-XXX-RX | 1.875" | 1.750" | Optional | 1.750" | 17.31" (LQK) |
| 1053-2125-XXX-RX | 2.125" | 1.750" | Optional | 1.750" | 16.89" (LQK) |
| 1053-2500-XXX-RX | 2.500" | 2.313" | Optional | 2.313" | 20.00" (LQK) |
XXX - Last 3 digits of part number denotes connection type
For additional sizes or further information please contact sales
