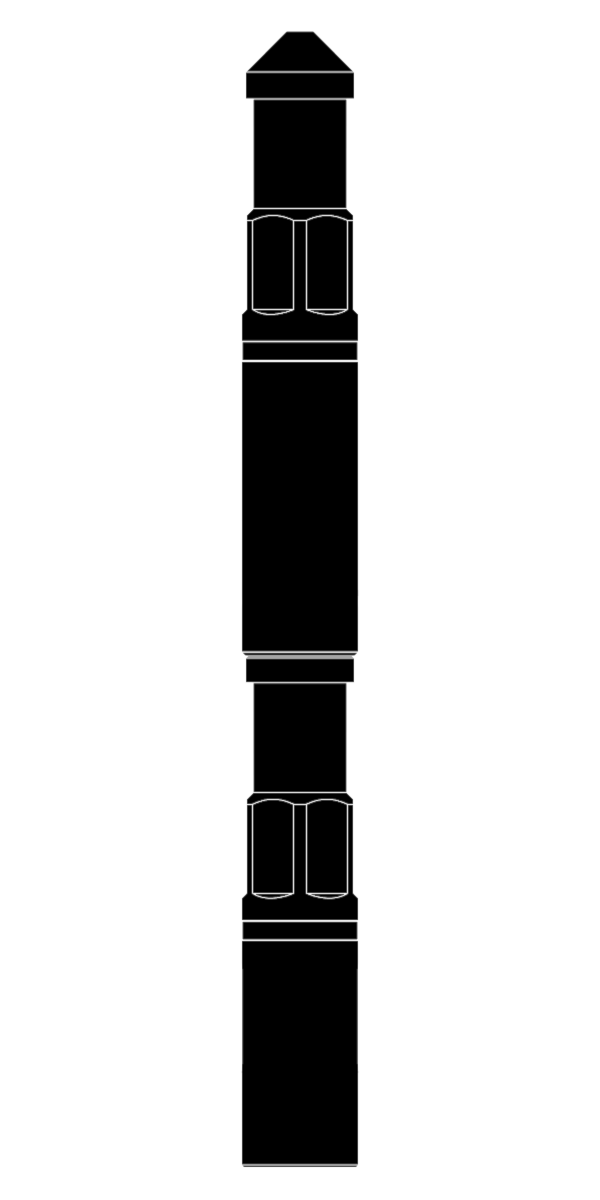

The design of the LiMAR Braided Line Rope Socket pays particular attention to the ease of assembly and disassembly whilst providing a reliable grip to the braided line.
A belleville washer stack provides initiated pre-load when assembled in which the energy stored in the compressed washer stack maintains a positive grip between the pear drop and the outer wall of the cable, regardless of line pull. An optional Disassembly Jig provides a safe and effective way to separate the pear drop from the sleeve assembly after use.
TOOL APPLICATIONS:
- For use with braided lines to enable a reliable attachment to the toolstring
DESIGN FEATURES & BENEFITS:
- Optional Disassembly Jig for safe disassembly
- Inventory reduction
- Available in all standard toolstring OD’s
- Connection options to suit customer requirements
- Simple, robust design ensuring ease of operation for the end user
- Selected components QPQ treated
- Hexagonal flats for safe make-up & break-out
TECHNICAL DATA
| Assembly Part No. | Actual OD | Fish Neck | Connection | Cable Size | Make Up Length |
| 1123-1250-XXXX-XXX-RX | 1.250" | 1.187" | Optional | TBC | 16.48" (LQK) |
| 1123-1500-XXXX-XXX-RX | 1.500" | 1.375" | Optional | up to 0.312" | 16.48" (LQK) |
| 1123-1750-XXXX-XXX-RX | 1.750" | 1.375" | Optional | up to 0.312" | 16.48" (LQK) |
| 1123-1875-XXXX-XXX-RX | 1.875" | 1.750" | Optional | up to 0.312" | 15.06" (LQK) |
| 1123-2125-XXXX-XXX-RX | 2.125" | 1.750" | Optional | up to 0.312" | 18.14" (LQK) |
| 1123-2500-XXXX-XXX-RX | 2.500" | 2.313" | Optional | up to 0.312" | 24.00" (LQK) |
XXXX - Denotes cable size
XXX - Last 3 digits of part number denotes connection type
For additional sizes or further information please contact sales
