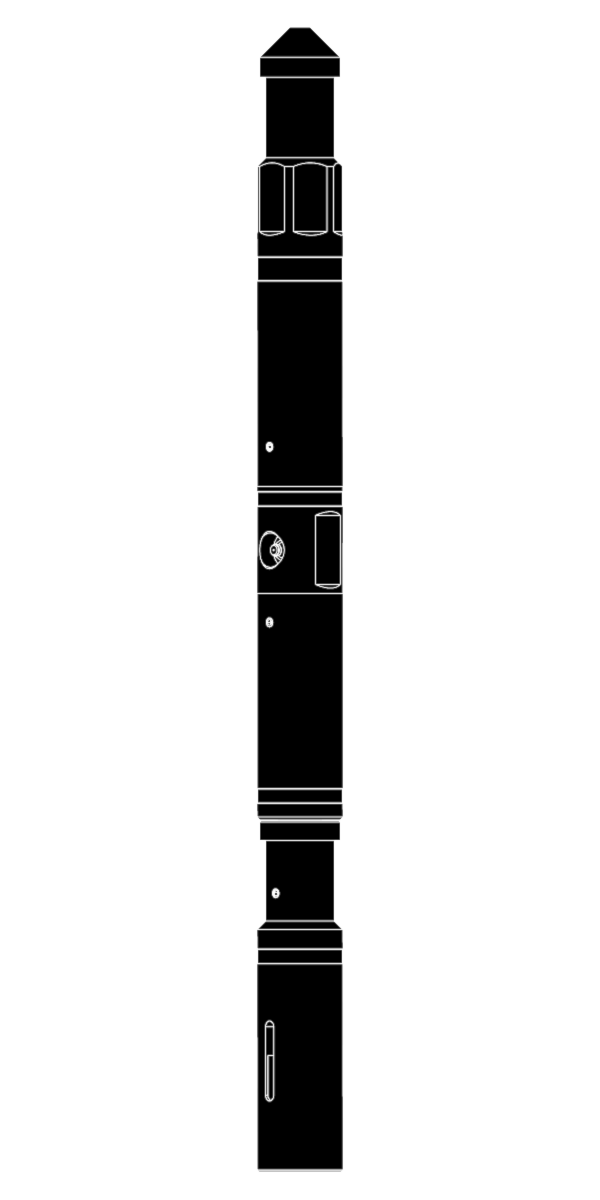

The design of the LiMAR Braided Line Rope Socket – Swivel Type pays particular attention to the ease of assembly and disassembly whilst providing a reliable grip to the braided line.
A belleville washer stack provides initiated pre-load when assembled in which the energy stored in the compressed washer stack maintains a positive grip between the pear drop and the outer wall of the cable, regardless of line pull. An integral swivel section prevents the build of torque in the braided line during deployment. An optional Disassembly Jig provides a safe and effective way to separate the pear drop from the sleeve assembly after use.
TOOL APPLICATIONS:
- For use with braided lines to enable a reliable attachment to the toolstring with integral swivel function to prevent cable torque
DESIGN FEATURES & BENEFITS:
- High load Swivel section with integral grease nipple
- Optional Disassembly Jig for safe disassembly
- Inventory reduction
- Available in all standard toolstring OD’s
- Connection options to suit customer requirements
- Simple, robust design ensuring ease of operation for the end user
- Selected components QPQ treated
- Hexagonal flats for safe make-up & break-out
TECHNICAL DATA
| Assembly Part No. | Actual OD | Fish Neck | Connection | Cable Size |
| 1021-1250-XXXX-XXX-RX | 1.250" | 1.187" | Optional | up to 0.218" |
| 1021-1500-XXXX-XXX-RX | 1.500" | 1.375" | Optional | up to 0.312" |
| 1021-1750-XXXX-XXX-RX | 1.750" | 1.375" | Optional | up to 0.312" |
| 1021-1875-XXXX-XXX-RX | 1.875" | 1.750" | Optional | up to 0.312" |
| 1021-2125-XXXX-XXX-RX | 2.125" | 1.750" | Optional | up to 0.312" |
| 1021-2500-XXXX-XXX-RX | 2.500" | 2.313" | Optional | up to 0.312" |
XXXX - Denotes cable size
XXX - Last 3 digits of part number denotes connection type
For additional sizes or further information please contact sales
