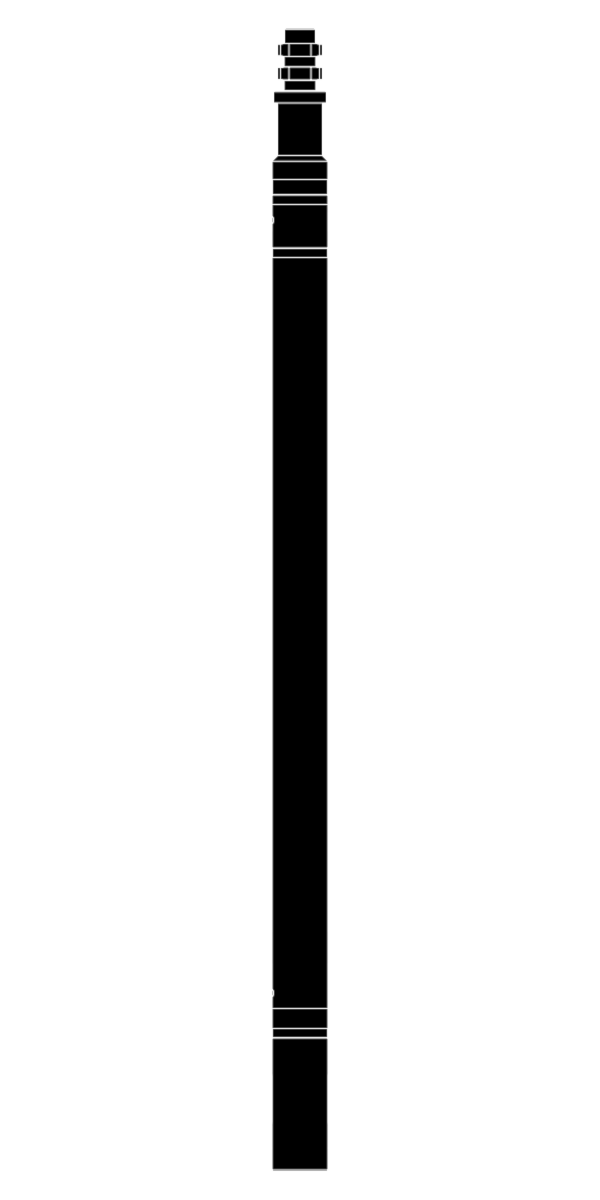

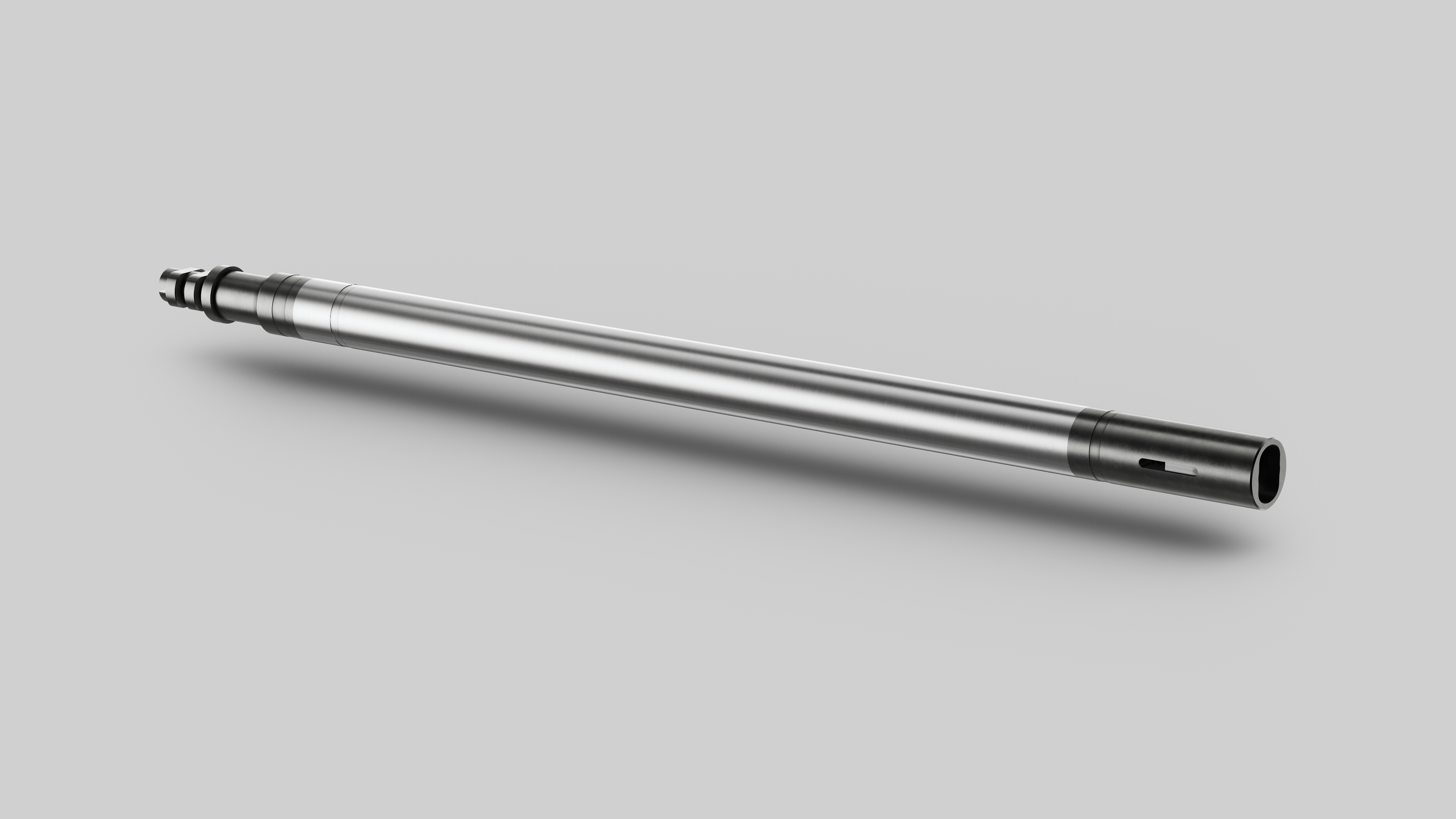

The LiMAR Tungsten Stem Section is devised to provide the necessary mass required for a wireline toolstring to overcome static or flowing well pressure to enable conveyance in the well.
The Tungsten Stem Section is comprised of a hollow cylinder which is filled with high density tungsten alloy inserts.The inserts are securely retained within the cylinder by the top & bottom subs. Tungsten provides additional mass per equivalent volume compared to standard stem made from conventional steel.
TOOL APPLICATIONS:
- Commonly used in applications where additional mass is required without having to increase the overall length of the toolstring
- Ideal for use in flowing surveys where additional mass is required to overcome the generated upward force of a flowing well
DESIGN FEATURES & BENEFITS:
- Positive insert securing feature to prevent internal movement
- Available in industry standard toolstring sizes
- Connection options to suit customer requirements
- Selected components QPQ treated
- Hexagonal flats for safe make-up & break-out
TECHNICAL DATA
| Assembly Part No. | Actual OD | Fish Neck | Connection | Length Options | Weight (lbs) |
| 1110-1250-XX-XXX-RX | 1.250" | 1.187" | Optional | 2’ / 3’ / 5’ | 10 / 16 / 29 |
| 1110-1500-XX-XXX-RX | 1.500" | 1.375" | Optional | 2’ / 3’ / 5’ | 16 / 25 / 45 |
| 1110-1750-XX-XXX-RX | 1.750" | 1.375" | Optional | 2’ / 3’ / 5’ | 23 / 39 / 69 |
| 1110-1875-XX-XXX-RX | 1.875" | 1.750" | Optional | 2’ / 3’ / 5’ | 24 / 41 / 74 |
| 1110-2125-XX-XXX-RX | 2.125" | 1.750" | Optional | 2’ / 3’ / 5’ | 31 / 53 / 97 |
| 1110-2500-XX-XXX-RX | 2.500" | 2.313" | Optional | 2’ / 3’ / 5’ | 48 / 80 / 144 |
XX - Denotes length
XXX - Last 3 digits of part number denotes connection type
For additional sizes or further information please contact sales
