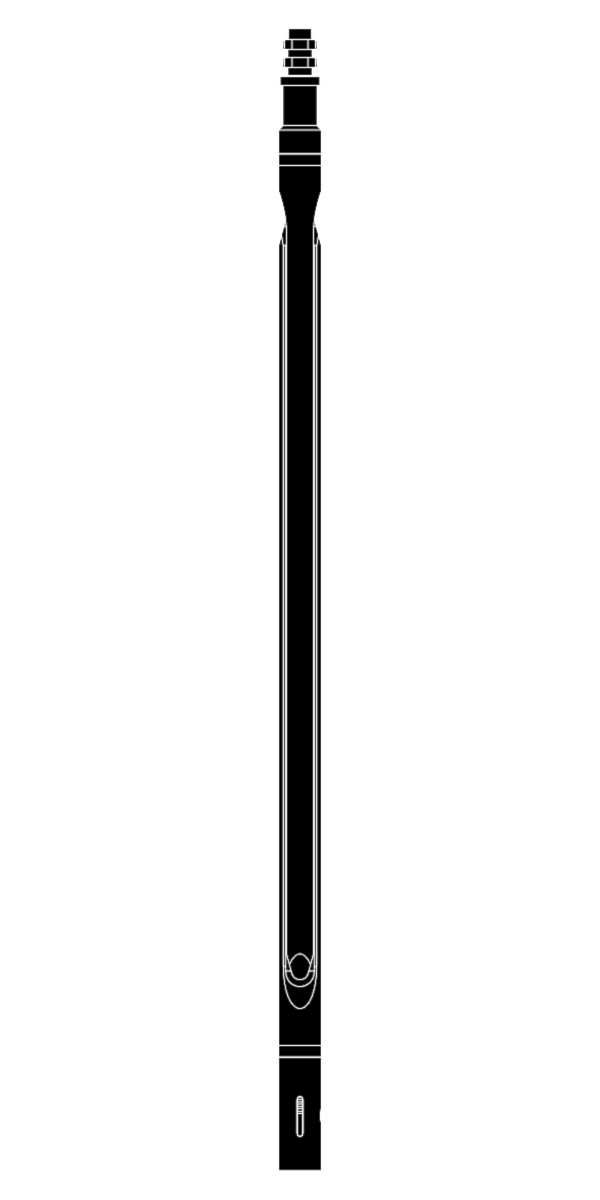

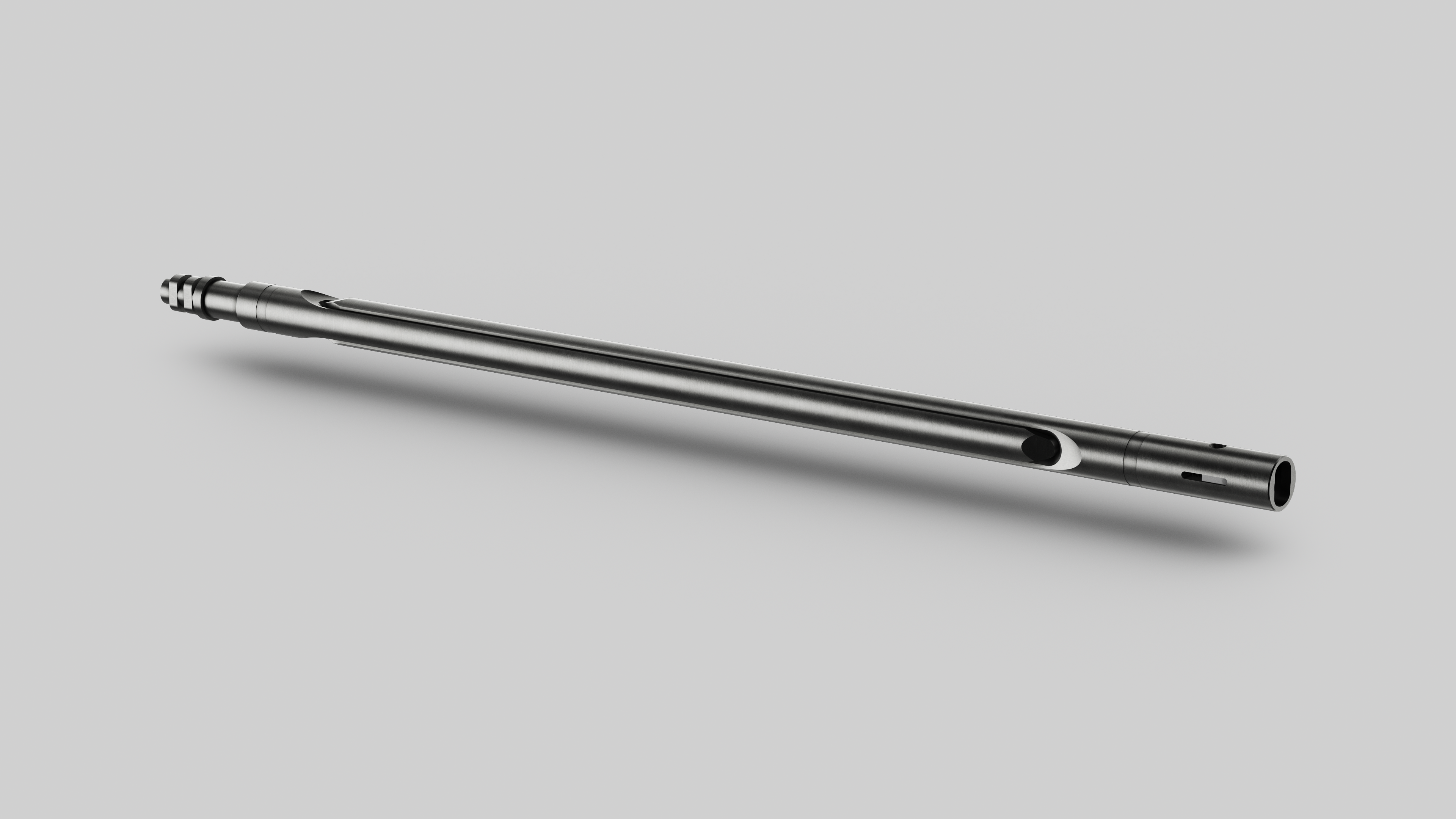

MECHANICAL STROKE JAR

The LiMAR Mechanical Stroke Jar, commonly known in the industry as the Spang Jar is a device designed to provide the fundamental bi-directional impact forces required to activate and manipulate mechanical tools downhole.

With two interlocking sliding sections, the impact is created when the upper sliding section reaches the end of the stroke & impacts with the interlocking lower section. The open and closed stroke positions can clearly be seen on the weight indicator by the winch operator at surface.

TOOL APPLICATIONS:

  • To provide upwards and downwards impact in the wireline toolstring for the activation and manipulation of devices downhole.

DESIGN FEATURES & BENEFITS:

  • In-house manufactured to LiMAR® proprietary design
  • Available in a range of industry standard sizes
  • Optional stroke lengths available
  • Bespoke designs available to suit customer requirements
  • Integral connection options to suit customer requirements
  • Selected components QPQ treated
  • Hexagonal flats for safe make-up & break-out

Request a QuoteDownload Datasheet Share

TECHNICAL DATA

Assembly Part No.Actual ODFish NeckConnectionJar Stroke OptionsMake up length - Closed
1061-1250-XX-XXX-RX1.250"1.187"Optional20" / 24" / 30"44.13" / 48.13" / 54.13" (LQK)
1061-1500-XX-XXX-RX1.500"1.375"Optional20" / 24" / 30"44.92" / 48.92" / 54.92" (LQK)
1061-1750-XX-XXX-RX1.750"1.375"Optional20" / 24" / 30"43.82" / 47.82" / 53.82" (LQK)
1061-1875-XX-XXX-RX1.875"1.750"Optional20" / 24" / 30"43.78" / 47.78" / 53.78" (LQK)
1061-2125-XX-XXX-RX2.125"1.750"Optional20" / 24" / 30"43.78" / 47.78" / 53.78" (LQK)
1061-2500-XX-XXX-RX2.500"2.313"Optional20" / 24" / 30"48.00" / 52.00" / 58.00" (LQK)

XX - Denotes stroke length
XXX - Last 3 digits of part number denotes connection type
For additional sizes or further information please contact sales
