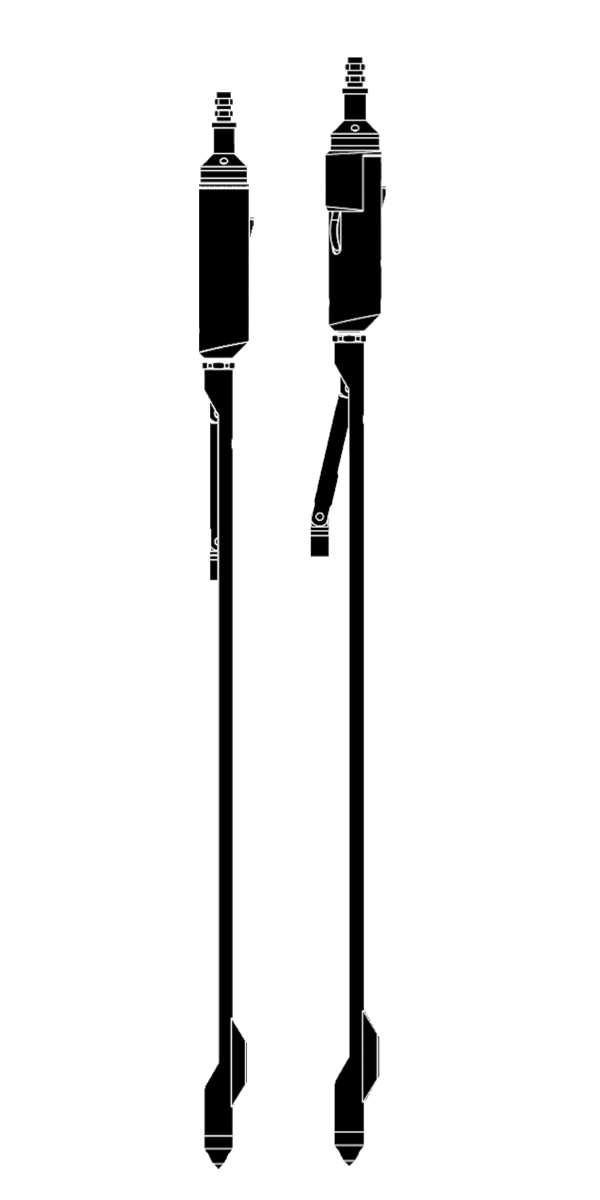

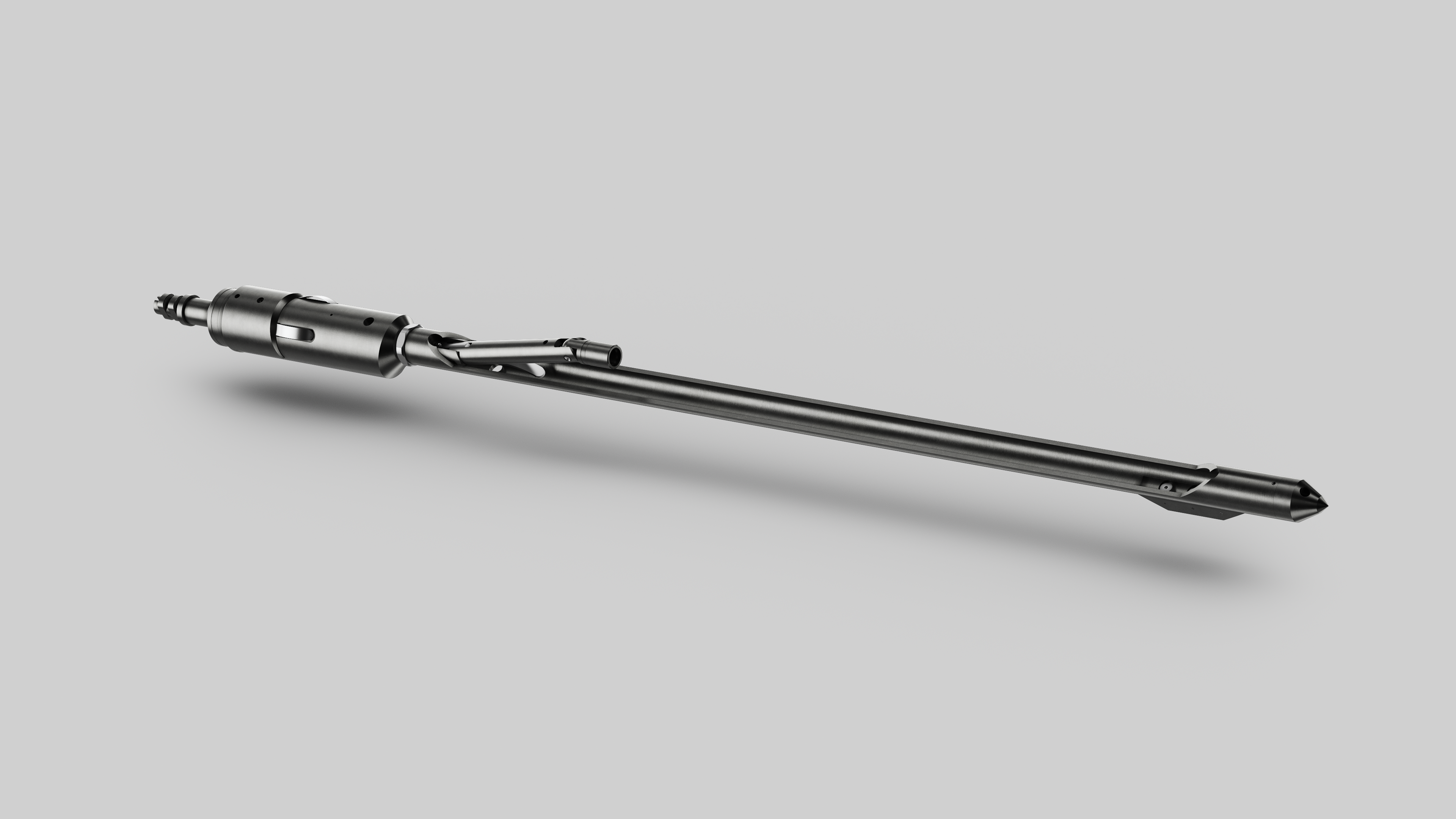

The LiMAR OK & OM Type Kickover Tools (KOT) will install & retrieve 1” and 1-1/2” Gas Lift Valves in various Side Pocket Mandrel’s (SPM).
The most common Kickover Tool’s used worldwide, maintaining key industry proven mechanisms; is easy to operate and maintain.
TOOL APPLICATIONS:
- Designed to set and retrieve 1” (OK) & 1-1/2” (OM) Gas Lift Valves in various Side Pocket Mandrels
DESIGN FEATURES & BENEFITS:
- Available to suit 1” & 1-1/2” Gas Lift Valves (GLV)
- Full Inconel Leaf, Kick & Coil Springs to ensure best performance
- Industry proven function including kick arm and trigger mechanisms
- Roller Swivel Subs available to convert to suit deviated wells
- Optional integral Swivel option available to assist orientation at depth
- Quick Connections can be supplied integral to prevent tool damage from stilson wrenches and increase tool life
- No welded components
- Fully shearable to ensure safe recovery
- Selected components QPQ treated
- Hexagonal flats for safe make-up & break
TECHNICAL DATA
OK-Type KOT to suit 1” GLV’s
Product Code | Nominal Tubing Size | Actual OD | To suit GLV | Catcher | Fish Neck | Connection |
1180 | 2-3/8" | 1.750" | 1" | Optional | Optional | Optional |
1180 | 2-7/8" | 2.062" | 1" | Optional | Optional | Optional |
1180 | 3-1/2" | 2.500" | 1" | Optional | Optional | Optional |
1180 | 4-1/2" | 3.720" | 1" | Optional | Optional | Optional |
OM-Type KOT to suit 1-1/2” GLV’s
| Product Code | Nominal Tubing Size | Actual OD | To suit GLV | Catcher | Fish Neck | Connection |
1204 | 2-7/8" | 2.223" | 1-1/2" | Catcher | Optional | Optional |
1204 | 3-1/2" | 2.739" | 1-1/2" | Optional | Optional | Optional |
1204 | 4-1/2" | 3.718" | 1-1/2" | Optional | Optional | Optional |
1204 | 5" | 4.038" | 1-1/2" | Optional | Optional | Optional |
1204 | 5-1/2" | 4.250" | 1-1/2" | Optional | Optional | Optional |
For special clearance Kickover Tools, additional sizes or further information please contact sales
