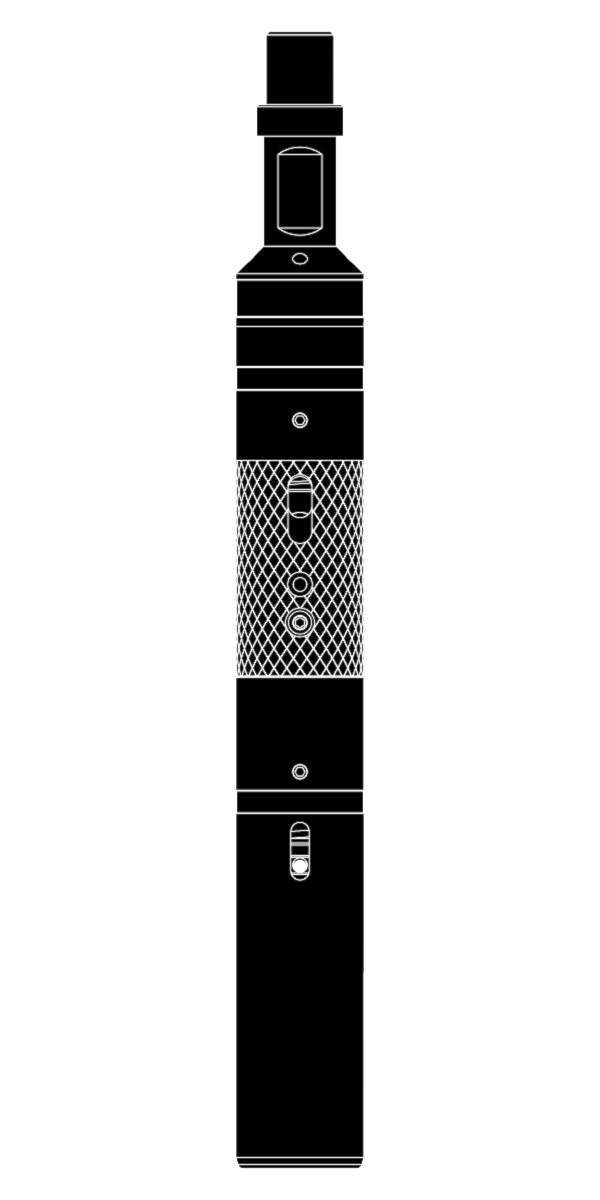

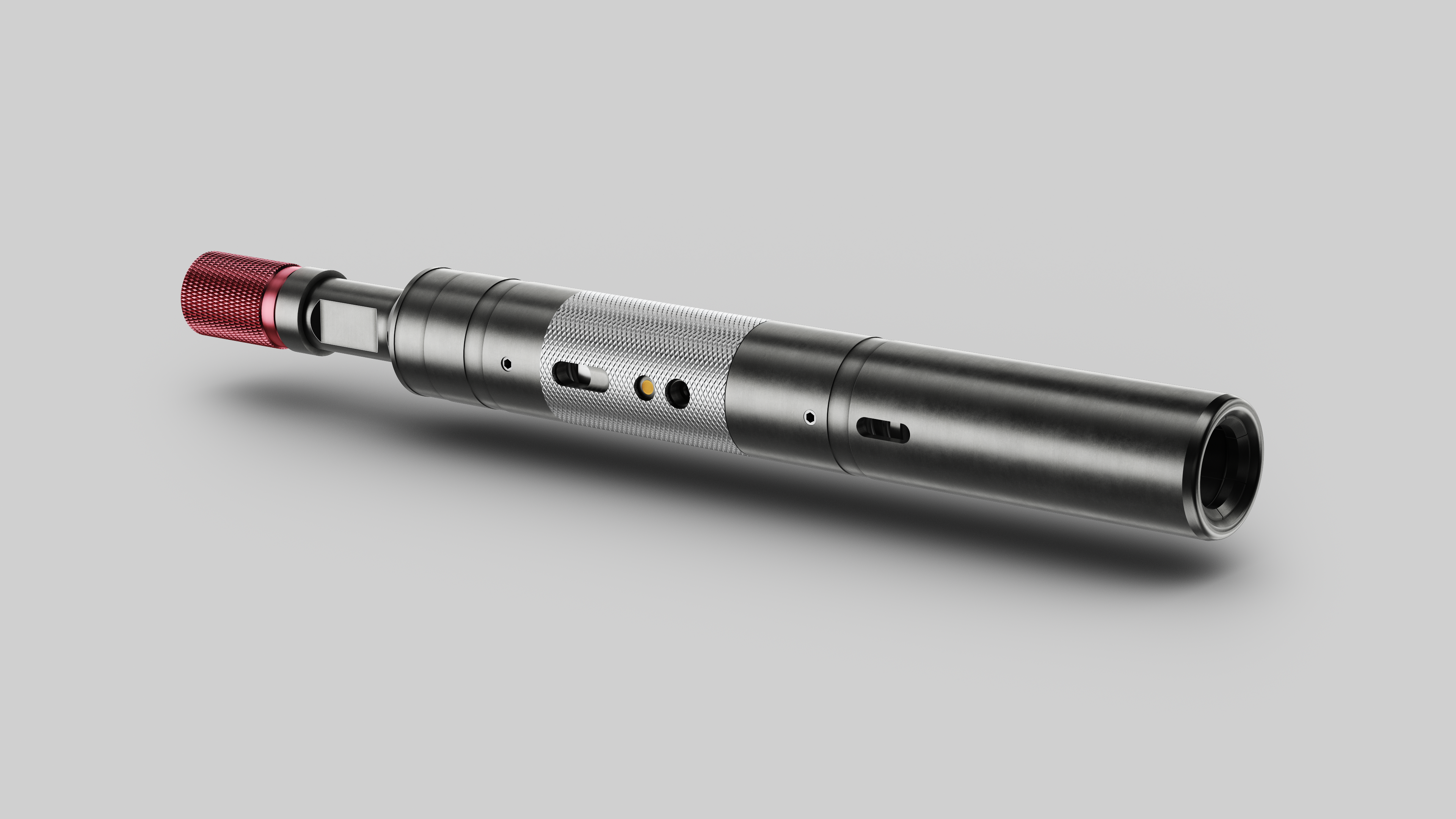

GLV (GAS LIFT VALVE) PULLING TOOL

The LiMAR GLV (Gas Lift Valve) Pulling Tool incorporates a collet-finger type cage to engage the full 360 degree underside of a Gas Lift Valve’s external type fish neck.

The full contact radius of the collet fingers provides a significantly greater load bearing area than the dogs of a standard type pulling tool.This design ensures the LiMAR® GLV Pulling Tool and the GLV fish neck are less prone to damage during GLV change-out operations. The unique LiMAR® locking button feature ensures the collet fingers remain in the release position whilst disengaging from the external fish neck.

TOOL APPLICATIONS:

  • Retrieval of Gas Lift Valves with external type fish necks

DESIGN FEATURES & BENEFITS:

  • Incorporates the unique LiMAR® locking button release feature to ensure
  •     collet fingers do not re-engage GLV fish neck
  • Core reach options to suit top or bottom latch Gas Lift Valves
  • Quick release feature for removing GLV from tool at surface
  • Optional shear screw sizes for operational flexibility
  • Connection options to suit customer requirements
  • Selected components QPQ treated
  • Hexagonal flats for safe make-up & break-out

Request a QuoteDownload Datasheet Share

TECHNICAL DATA

Assembly Part No.Fish NeckConnectionMake up LengthTo Engage Fish Neck
1051-1350-XXX-X-RX1.187"Optional14.53"0.875"
1051-1750-XXX-RX1.187"Optional18.93"1.187"

XXX - Denotes connection type
X - Denotes top or bottom latch
For additional sizes or further information please contact sales
