GLV DIAGNOSTICS & CLEAN-OUT PACKAGE

TOOL APPLICATIONS:

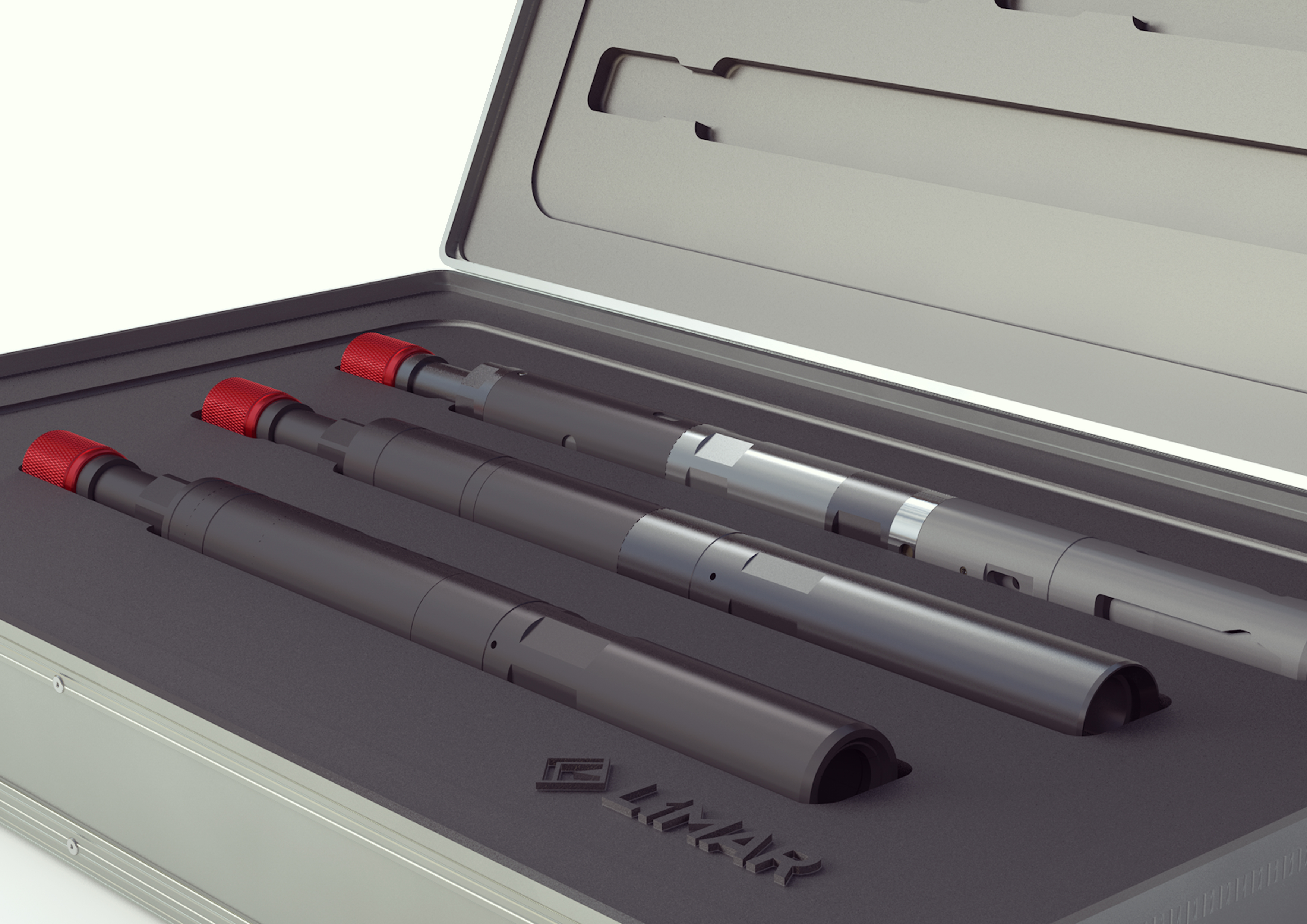

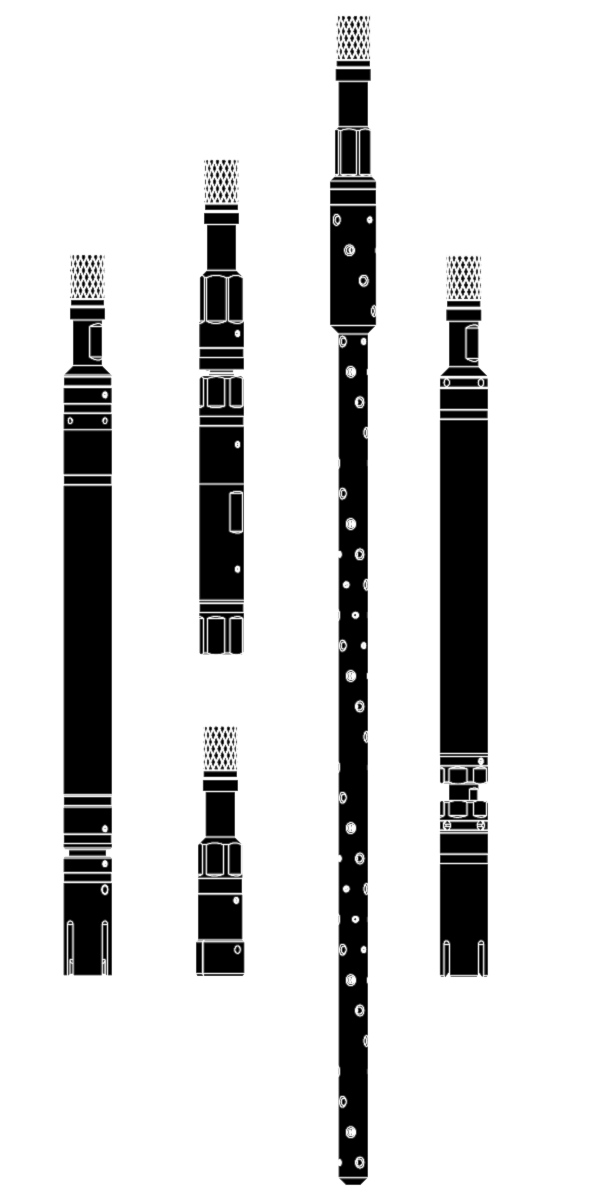

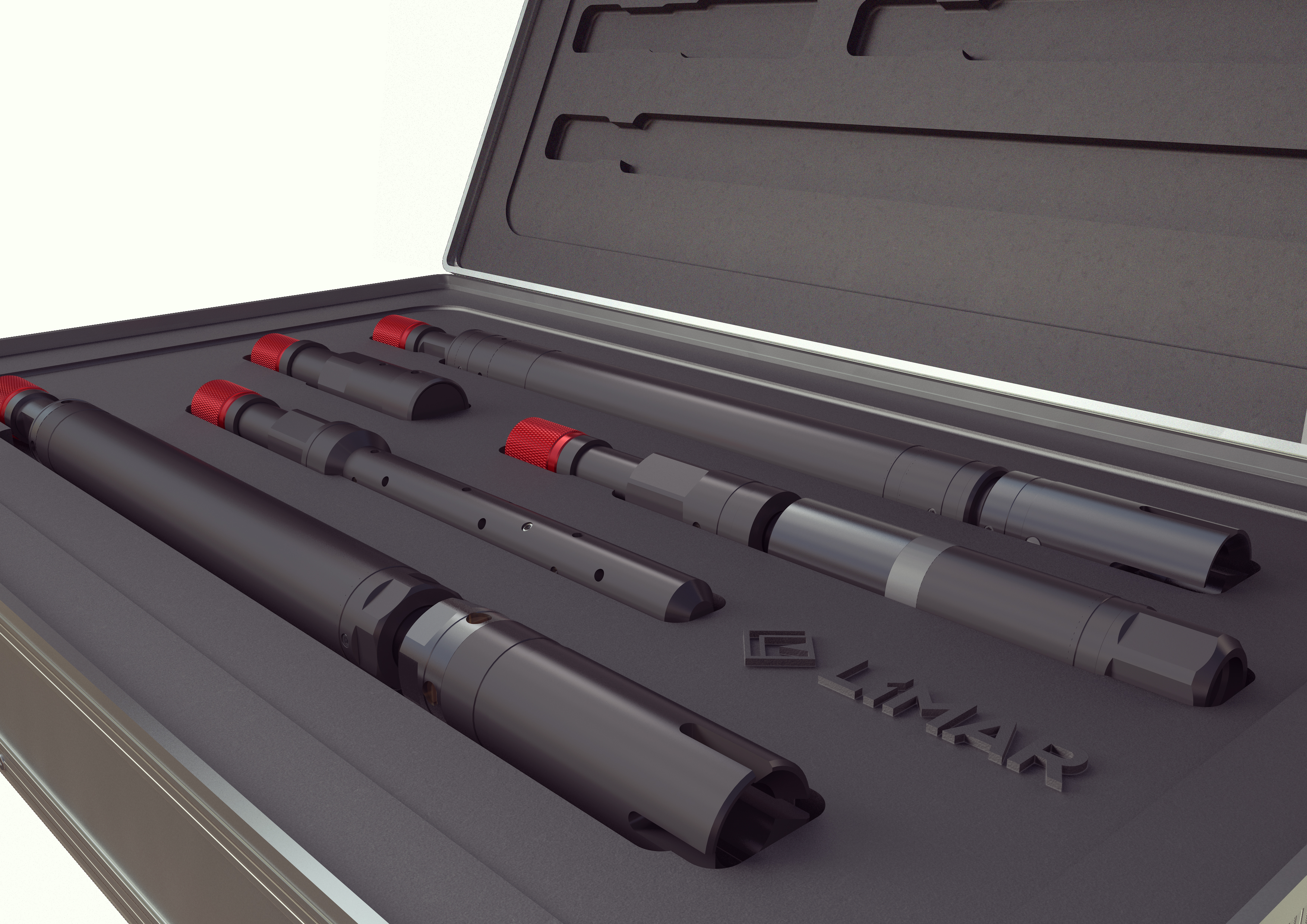

• To provide a compact but comprehensive package of key components required to diagnose the condition and subsequent retrieval of the Gaslift Valve, in and around the Side Pocket Mandrel.

DESIGN FEATURES & BENEFITS:

ORIENTATION DETECTION SUB

• Ideal for ascertaining the orientation of the SPM within the Completion
• Two-Run 180 degree Impression Disc reduces cost & inventory
• Positive locking mechanism to prevent repeat, distorted impression

im-PRES SUB

• Protective Shroud prevents distortion and damage to lead insert during KOT Arm activation
• Protective Shroud prevents swelling after impression
• Safe - Unique LiMAR Insert means no heating and pouring of molten lead
• Cost Effective – significant time and cost savings involved due to the rapid replacement of Lead Inserts
• Used Lead inserts can be retained for physical inspection after use

COMPACT KOT DUMP BAILER

• Multiple Shear Screw option to accommodate varying downhole pressures
• Shoe designed not to interfere with GLV Latch and allow for optimum debris recovery
• Chamber volume optimised for effective debris recovery

COMPACT KOT HYDROSTATIC BAILER

• Can be made up to any Kickover Tool Multiple Shear Screw option to accommodate varying downhole pressures
• Shoe designed not to interfere with GLV Latch and allow for optimum debris recovery
• Chamber volume optimised for effective debris recovery

SHARED FEATURES & BENEFITS

• Simple, robust designs ensuring ease of operation for the end user
• Selected components QPQ treated
• Hexagonal flats for safe make-up & break-out
