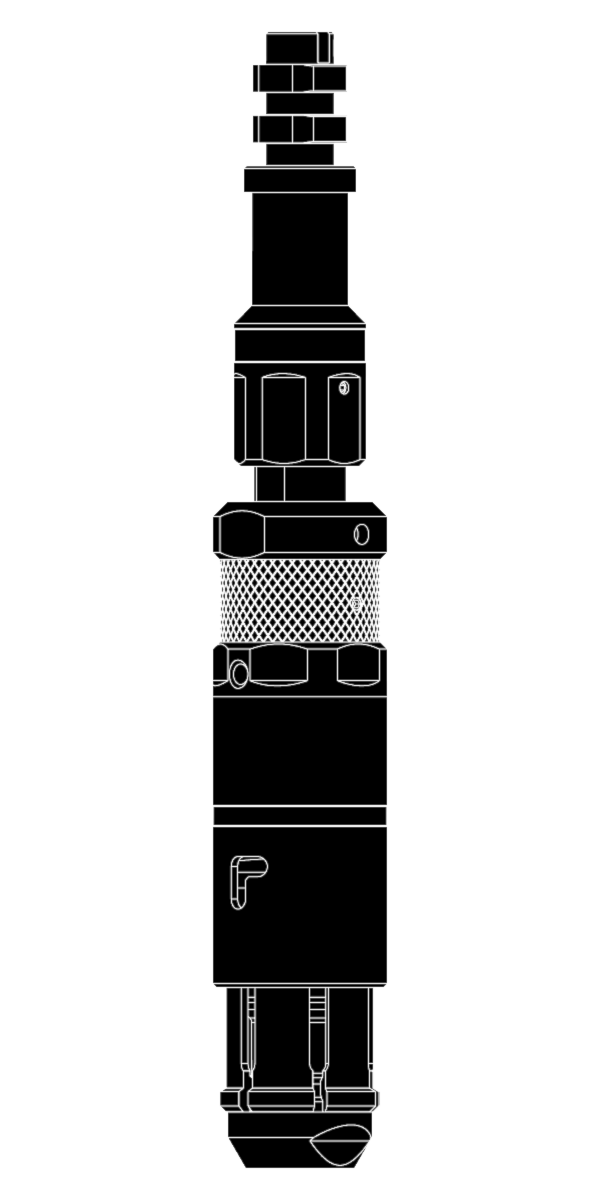

GS TYPE PULLING TOOL

The LiMAR GS type Pulling Tool is designed for the setting and retrieval of items with “Otis” type internal fish neck profiles. Downward jarring will shear a pin to allow the release and recovery of the GS to surface.

The LiMAR® GS type Pulling Tool incorporates several unique features compared to most industry standard GS type pulling tools. These features include the unique Arm-Align® feature for integral re-arming and shear pin alignment. The design also includes a positive disengagement mechanism to remove the GS from tools at surface without compromising the strength of the GS skirt.

TOOL APPLICATIONS:

  • Setting and retrieval of items with internal “Otis” type fish necks

DESIGN FEATURES & BENEFITS:

  • Supplied in industry standard GS OD’s
  • Threaded core to suit industry standard running / pulling accessories
  • Simplistic, ergonomic design for rapid redress
  • Optional LiMAR® GU Adapter available to convert GS to GR
  • Optional LiMAR® Multi-Action Shear Sub available for multiple, sequential shear direction options;
    • Shear Down
    • Shear Up
    • Jar-down indefinitely, jar-up indefinitely – Shear Down
  • “J” Slot feature for simple release at surface
  • LiMAR Arm-Align® feature for integral re-arming and shear pin alignment
  • Connection options to suit customer requirements
  • Simple, robust design ensuring ease of operation for the end user
  • Selected components QPQ treated

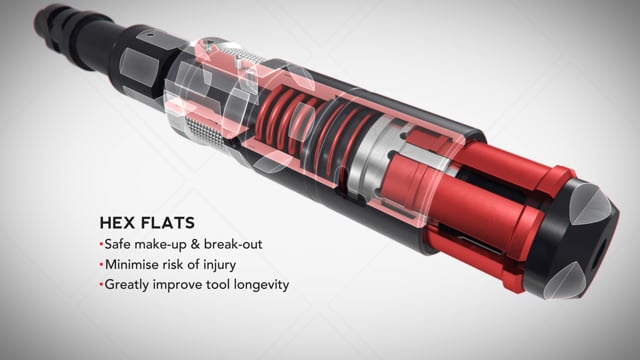

  • Hexagonal flats for safe make-up & break-out

Request a QuoteDownload Datasheet Share

TECHNICAL DATA

Assembly Part No.Nominal ODActual ODFish NeckConnectionTo Engage Fish Neck
7091-1500-XXX-RX 1-1/2" 1.460"1.187"Optional1.060"
7091-2000-XXX-RX 2"1.780"OptionalOptional 1.380"
7091-2500-XXX-RX 2-1/2" 2.220"OptionalOptional1.810"
7091-3000-XXX-RX 3"2.720"OptionalOptional 2.310"
7091-3500-XXX-RX 3-1/2" 3.100"OptionalOptional 2.620"
7091-4000-XXX-RX 4" 3.600"OptionalOptional 3.120"
7091-5000-XXX-RX 5" 4.500"OptionalOptional 4.000"
7091-6000-XXX-RX 6"5.600"OptionalOptional 4.750"
7091-7000-XXX-RX 7"5.820"OptionalOptional 5.000"

XXX - Last 3 digits of part number denotes connection type
For additional sizes or further information please contact sales
