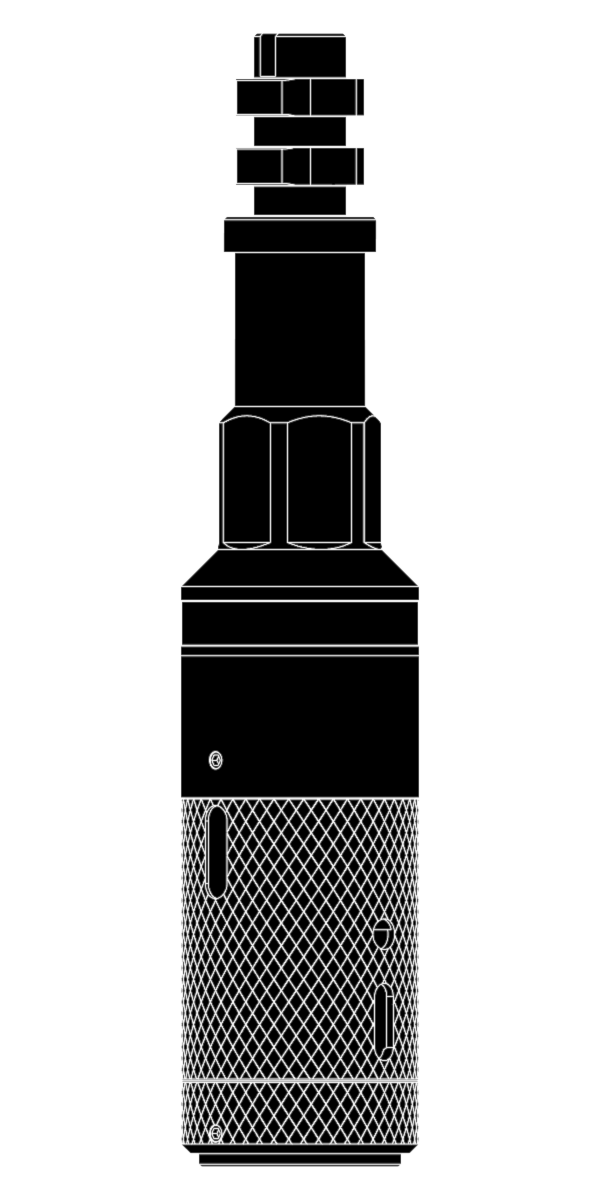

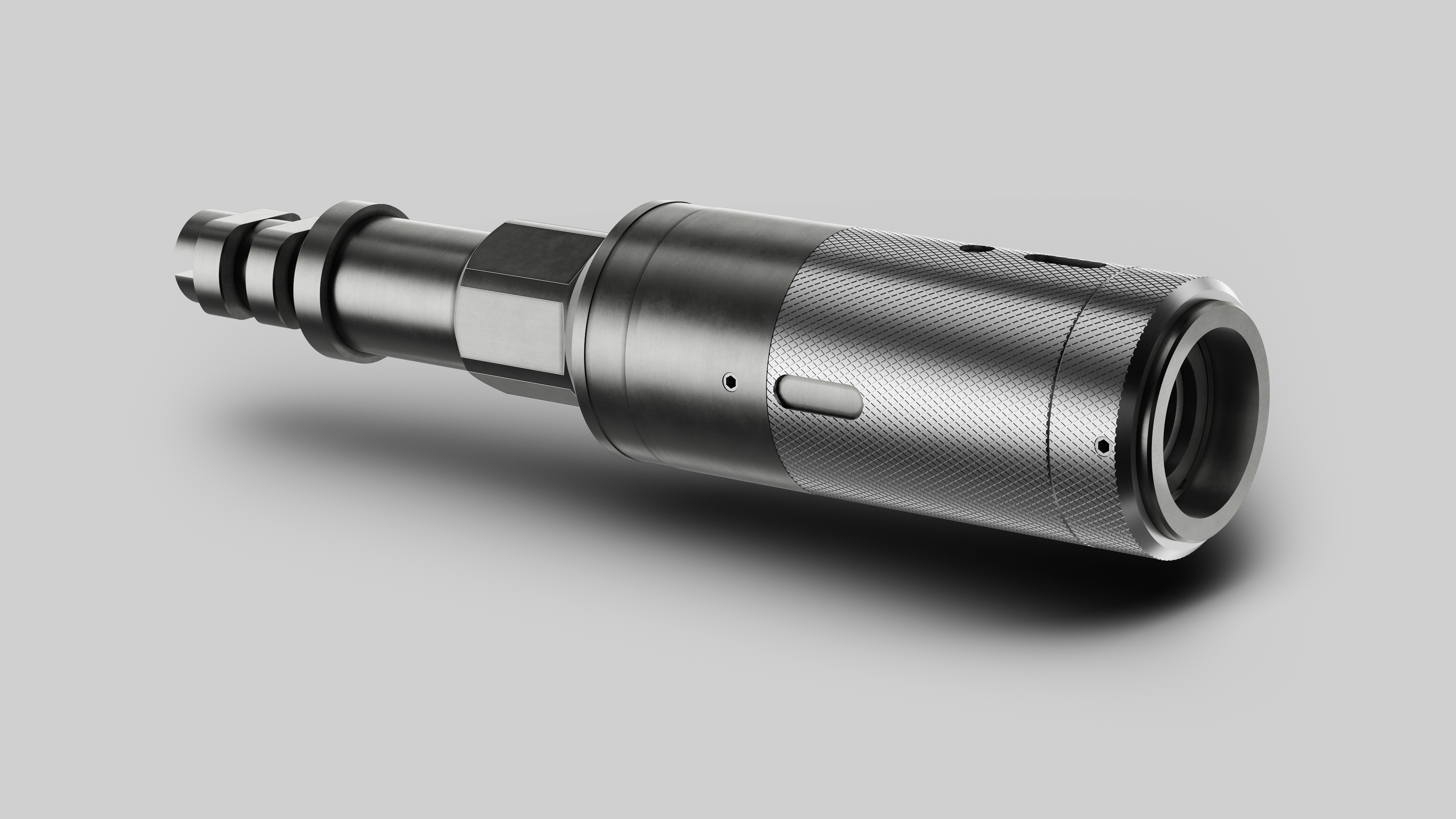

The LiMAR Multi-Action Shear (MAS) Sub incorporates the unique Arm-Align® feature and is designed to be run in conjunction with the LiMAR GS type Pulling Tool.
The MAS Sub increases operational flexibility by providing multiple, sequential shear-direction options. The primary function of the Multi-Action Shear Sub is to reduce the likelihood of a miss-run during operations such as the retrieval of flow control devices including downhole safety valves & blanking plugs.
TOOL APPLICATIONS:
- Primarily used for the successful, one-trip retrieval of downhole flow control devices
DESIGN FEATURES & BENEFITS:
- Retrofittable to standard GS type Pulling Tools
- Supplied in industry standard GS OD’s
- The MAS Sub and GS combination can be easily configured for multiple shear direction options;
- Shear Down
- Shear Up
- Jar-down indefinitely, jar-up indefinitely, Shear Down
- LiMAR Arm-Align® feature for integral re-arming and shear pin alignment
- Simplistic, ergonomic design for rapid redress including quick-release locking segments resulting in no requirement to disassemble between runs
- Connection options to suit customer requirements
- Simple, robust design ensuring ease of operation for the end user
- Selected components QPQ treated
- Hexagonal flats for safe make-up & break-out
TECHNICAL DATA
| Assembly Part No. | Nominal OD (to suit GS) | Actual OD | Fish Neck | Connection |
| 7162-2000-XXX-RX | 2" | 1.780" | Optional | Optional |
| 7162-2500-XXX-RX | 2-1/2" | 2.220" | Optional | Optional |
| 7162-3500-XXX-RX | 3" / 3-1/2" / 4" | 2.720" | Optional | Optional |
| 7162-5000-XXX-RX | 5" / 6" / 7" | 4.500" | Optional | Optional |
XXX - Last 3 digits of part number denotes connection type
For additional sizes or further information please contact sales
