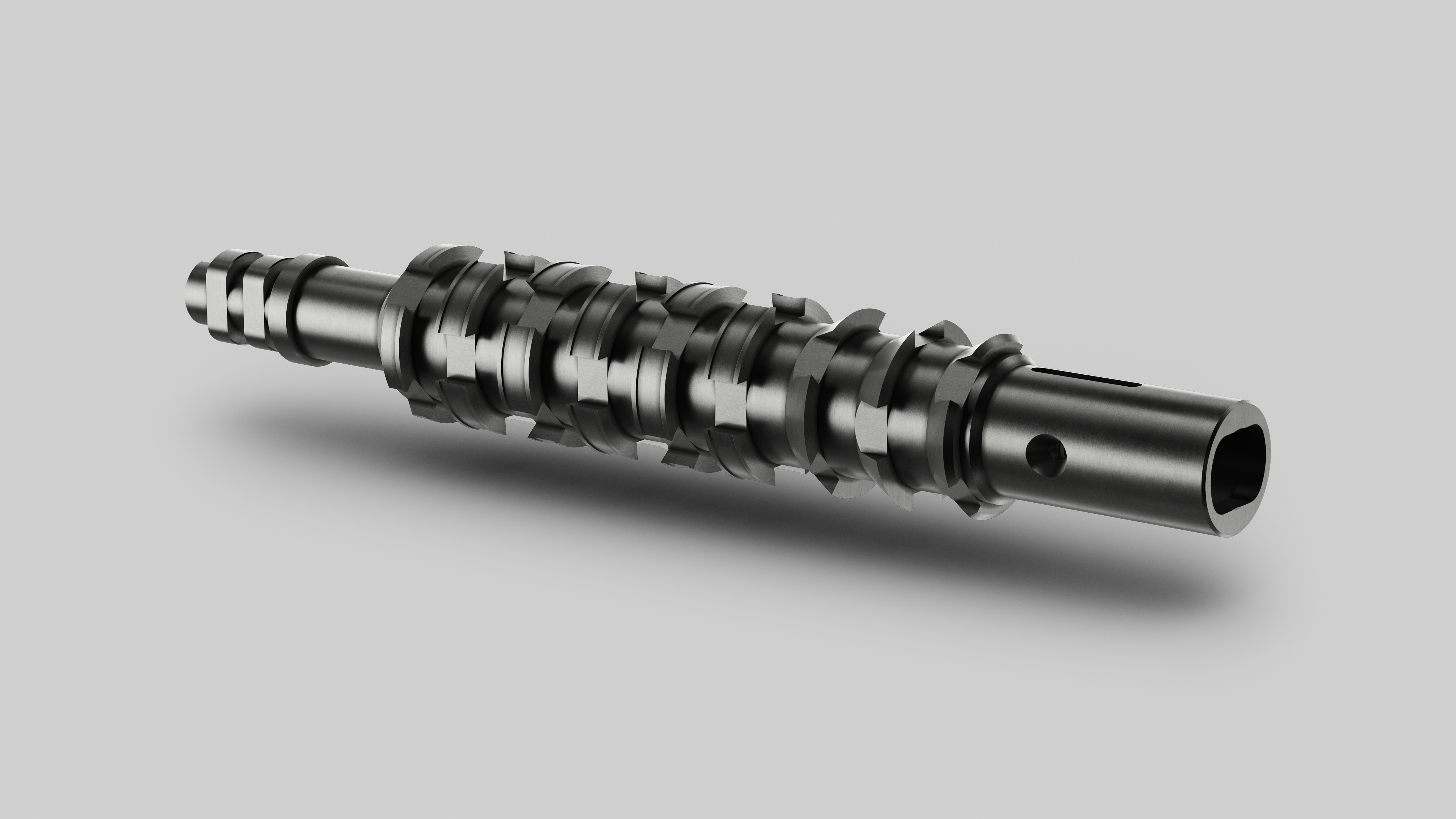

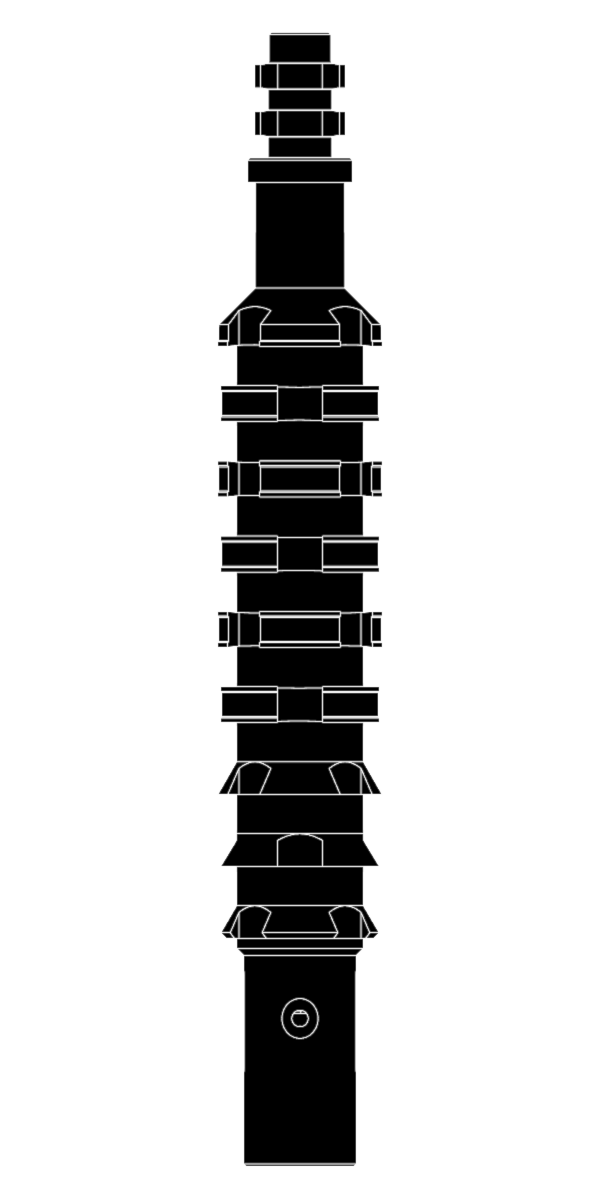

PINEAPPLE BROACH

The LiMAR Pineapple Broach incorporates hardened cutting profiles which are designed to clear tubing restrictions in the well bore.

Supplied in a range of sizes to suit the well geometry, a sucker rod box thread in the lower end of the broach allows for deployment of multiple broaches or other utility type tools below.

TOOL APPLICATIONS:

  • To remove tubing restrictions caused by scale or debris build up on the tubing wall or nipple profile

DESIGN FEATURES & BENEFITS:

  • Available in a range of sizes to suit all completion designs
  • 360deg cutting face ensuring full coverage during broaching
  • Hardened cutting face with full hardness material certificates supplied with every order
  • Connection below to allow deployment of multiple broaches or other tools
  • Connection options to suit customer requirements
  • Selected components QPQ treated
  • Hexagonal flats for safe make-up & break-out





Request a QuoteDownload Datasheet Share

TECHNICAL DATA

Assembly Part No.Nominal Tubing SizeTo Suit Sizes Up ToFish NeckConnection
1195-XXXX-XXX-RX2-3/8"2.000"OptionalOptional
1195-XXXX-XXX-RX2-7/8"2.500"OptionalOptional
1195-XXXX-XXX-RX3-1/2"3.000"OptionalOptional
1195-XXXX-XXX-RX4-1/2"4.000"OptionalOptional
1195-XXXX-XXX-RX5-1/2"5.000"OptionalOptional
1195-XXXX-XXX-RX7"6.250"OptionalOptional

XXXX - Denotes OD
XXX- Last 3 digits of part number denotes connection type
For additional sizes or further information please contact sales
