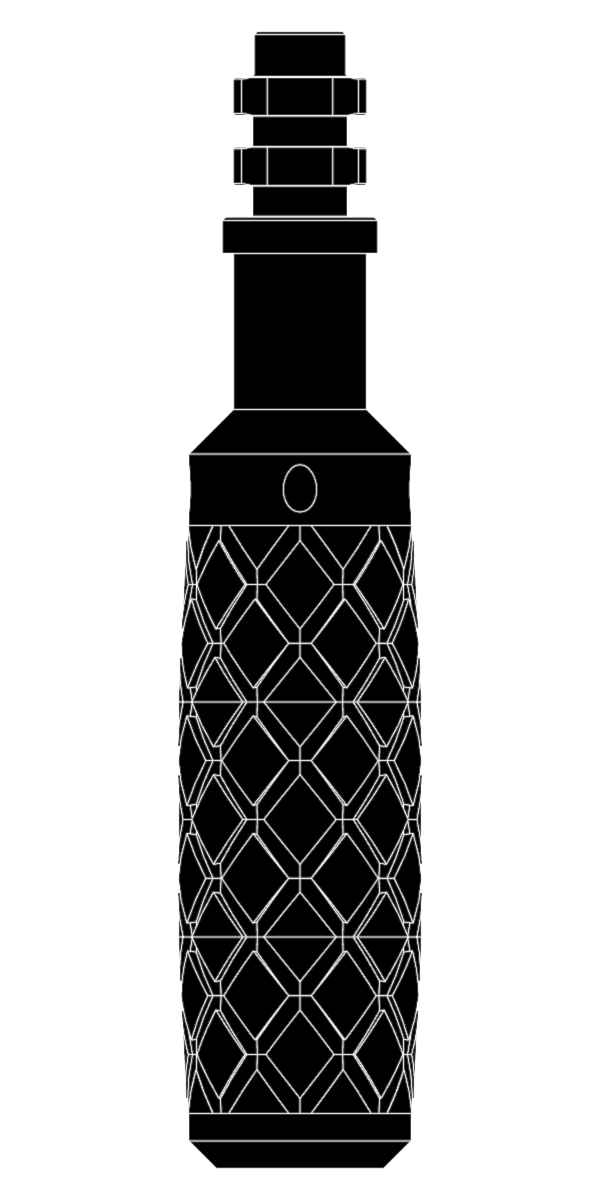

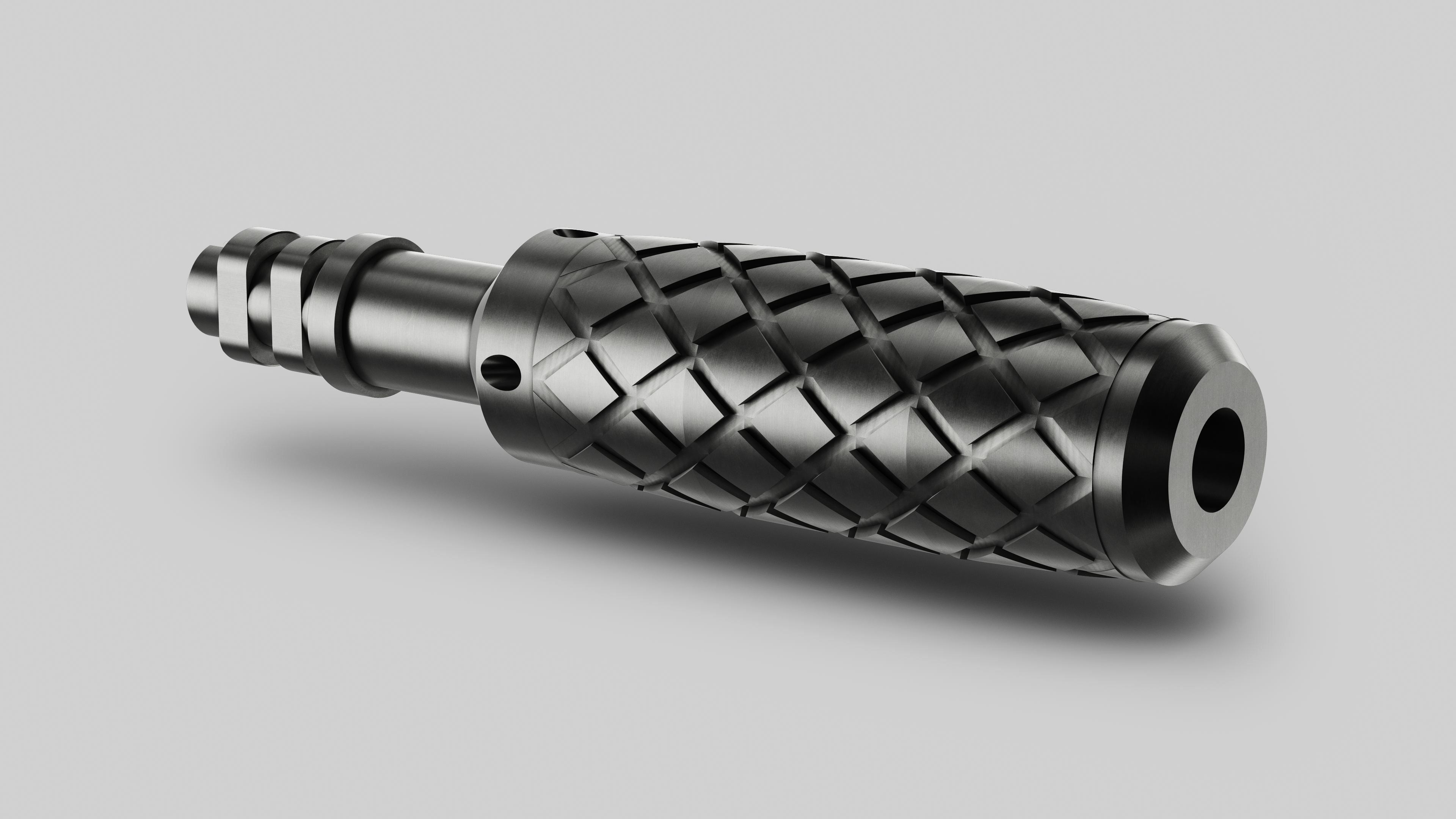

The LiMAR Diamond Broach incorporates hardened diamond-shaped cutting profiles which are designed to clear tubing restrictions in the well bore.
Supplied in a range of sizes to suit the well geometry, a bypass hole through the centre of the broach allows it to pass through fluid with minimal resistance whilst reducing the hydraulic cushioning effect during jarring.
TOOL APPLICATIONS:
- To remove tubing restrictions caused by scale or debris build up on the tubing wall or nipple profile
DESIGN FEATURES & BENEFITS:
- Available in a range of sizes to suit all completion designs
- 360deg cutting face ensuring full coverage during broaching
- Hardened cutting face with full hardness material certificates supplied with every order
- Through-bore bypass in larger sizes reducing "cushioning" effect and weight
- Connection options to suit customer requirements
- Selected components QPQ treated
- Hexagonal flats for safe make-up & break-out
TECHNICAL DATA
| Assembly Part No. | Nominal Tubing Size | To Suit Sizes Up To | Fish Neck | Connection |
| 1125-XXXX-XXX-RX | 2-3/8" | 2.000" | Optional | Optional |
| 1125-XXXX-XXX-RX | 2-7/8" | 2.500" | Optional | Optional |
| 1125-XXXX-XXX-RX | 3-1/2" | 3.000" | Optional | Optional |
| 1125-XXXX-XXX-RX | 4-1/2" | 4.000" | Optional | Optional |
| 1125-XXXX-XXX-RX | 5-1/2" | 5.000" | Optional | Optional |
| 1125-XXXX-XXX-RX | 7" | 6.250" | Optional | Optional |
XXXX - Denotes OD
XXX- Last 3 digits of part number denotes connection type
For additional sizes or further information please contact sales
