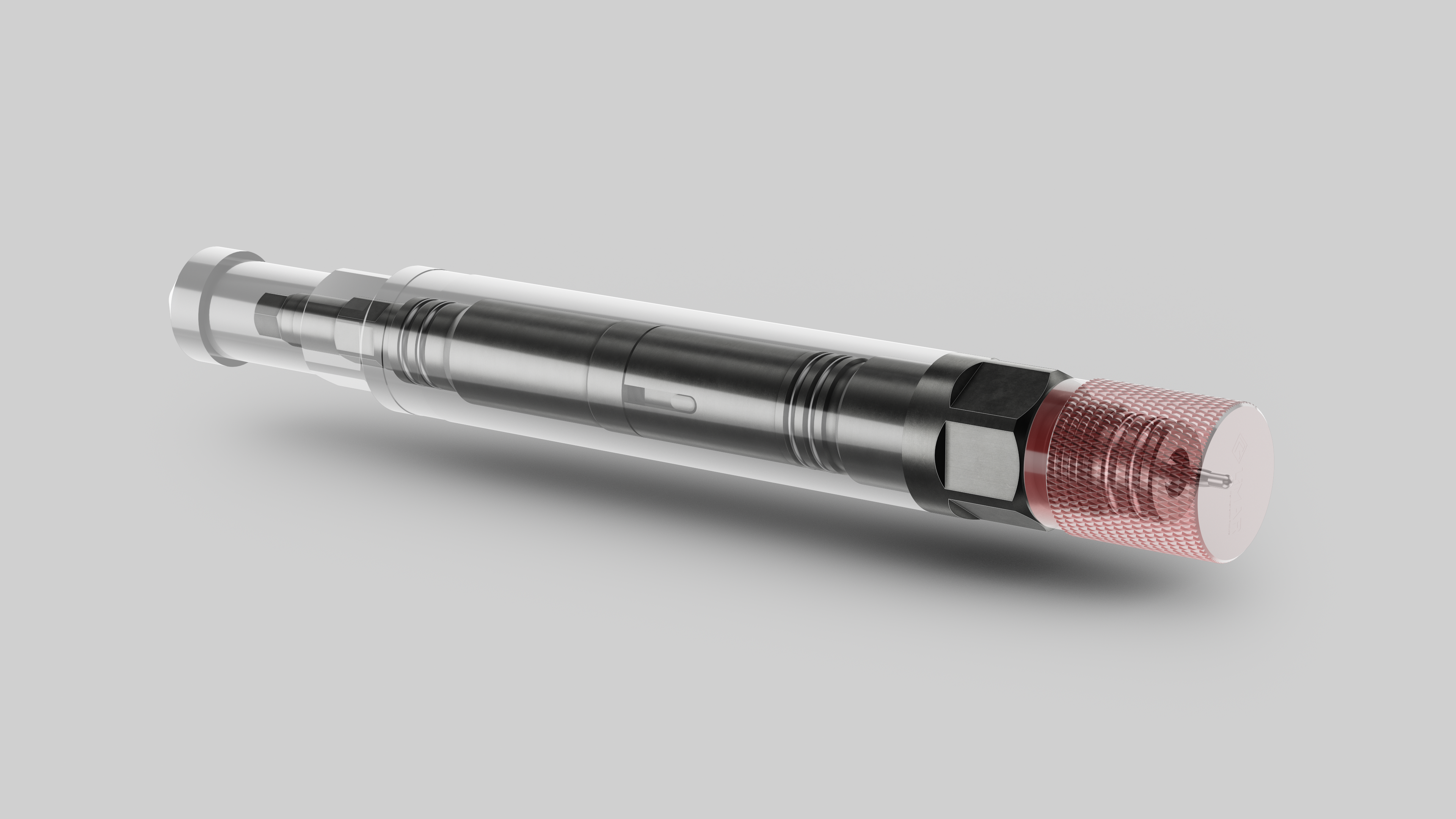

The LiMAR® W&B Rope Socket is designed to terminate and connect the end of the specialised W&B 0.189” (4.8mm) SlickLight-H to a toolstring.
A unique sealed Pear Drop and Sleeve arrangement can be assembled rapidly to provide and maintain a reliable grip to the wire whilst simultaneously terminating the optical fibre line and providing electrical connectivity to the toolstring below.
TOOL APPLICATIONS:
- For use with W&B 4.8mm (0.189”) SlickLight-H to enable a reliable termination of optical fibre and copper to the toolstring below
DESIGN FEATURES & BENEFITS:
- Rapid mechanical and electrical assembly and disassembly
- Industry recognised GO Connections
- Dual elastomer seal arrangements throughout
- 20,000psi pressure rating
- 200degC temperature rating
- Simple, robust design ensuring ease of operation for the end user
- Selected components QPQ treated
- Hexagonal flats for safe make-up & break-out
- Sour Service versions available
TECHNICAL DATA
Assembly Part No. | Actual OD | Wire Size / Type | Connection | Make Up Length | Max. Temp | Max. Pressure (psi) |
1262-1687-0189-086-RX | 1.687" | 4.8mm (0.189”) W&B SlickLight-H | 1.187"-12 UN GO Pin | 12.13" | 200 / 392 | 20,000 |
1262-2125-0189-086-RX | 2.125" | 4.8mm (0.189") W&B SlickLight-H | 1.187”-12 UN GO Pin | 12.13" | 200 / 392 | 20,000 |
For additional sizes or further information please contact sales
