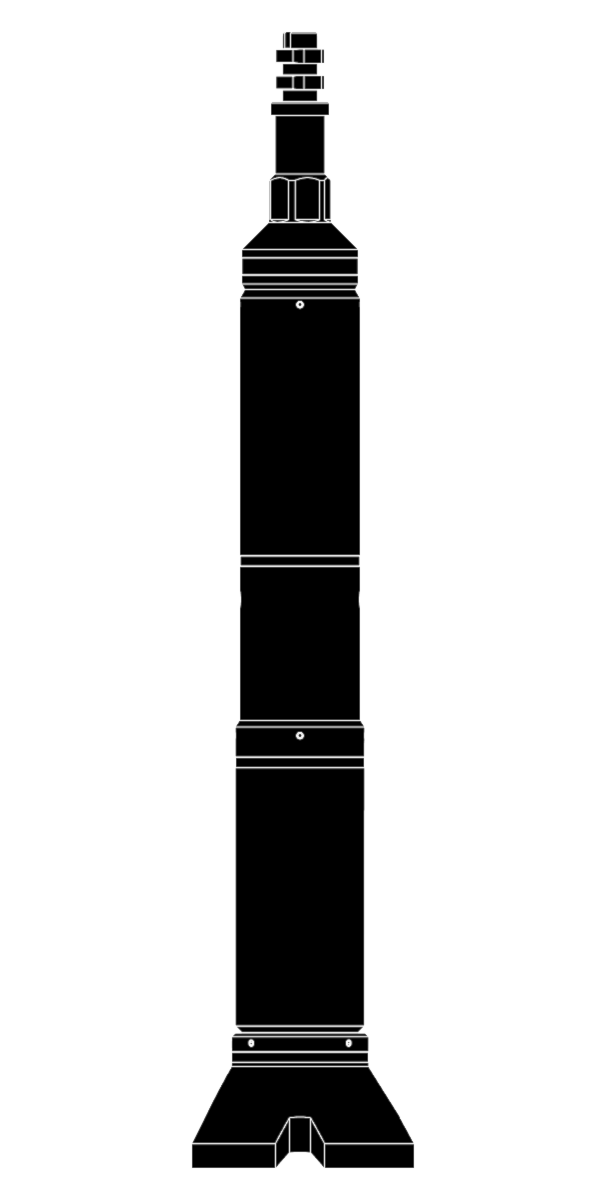

UNI-BELL GUIDE

The LiMAR Uni-Bell Guide is a fully adjustable tool designed to carry tools of varying length and diameter.

From 1-1/2” up to 3” Nominal pulling tools, in a single tool, the Uni-Bell Guide can deploy the complete LiMAR pulling tool range as well as R, S, JD & JU type tools. Designed primarily for 4-1/2” completions and above, the Uni-Bell Guide can be fitted with Bell Skirts of any chosen diameter to assist with engaging small fish necks where a non-skirted tool may by-pass.

TOOL APPLICATIONS:

  • Designed to house tools of varying length and diameter to retrieve or deploy small OD tools in larger bore tubulars

DESIGN FEATURES & BENEFITS:

  • Suitable for 1-1/2”, 2”, 2-1/2” & 3” Pulling Tools including LiMAR SD, SU, Uni-Tool
  • 3rd party tools can also be deployed including Otis type R, S & Camco JD / JU type Pulling Tools
  • Easily adjustable telescopic Housing to accommodate tools of varying length
  • Interchangeable Inserts to accommodate tools of varying diameter
  • Optional interchangeable Bell Skirts in any chosen diameter available to suit customer requirements
  • Simplistic, ergonomic design for rapid redress
  • Inventory reduction
  • Connection options to suit customer requirements
  • Selected components QPQ treated
  • Hexagonal flats for safe make-up & break-out

Request a QuoteDownload Datasheet Share

TECHNICAL DATA

Assembly Part No.Minimum ODFish NeckConnectionBell Skirt OD
1013-3000-XXX-XXX-XXX-MAX-RX3.875"OptionalOptionalOptional



XXX first 3 digits of part number denotes external / upper connection type
XXX-XXX 6 digits of part number denotes dual option internal / lower connection type
For additional sizes or further information please contact sales
