SU PULLING TOOL

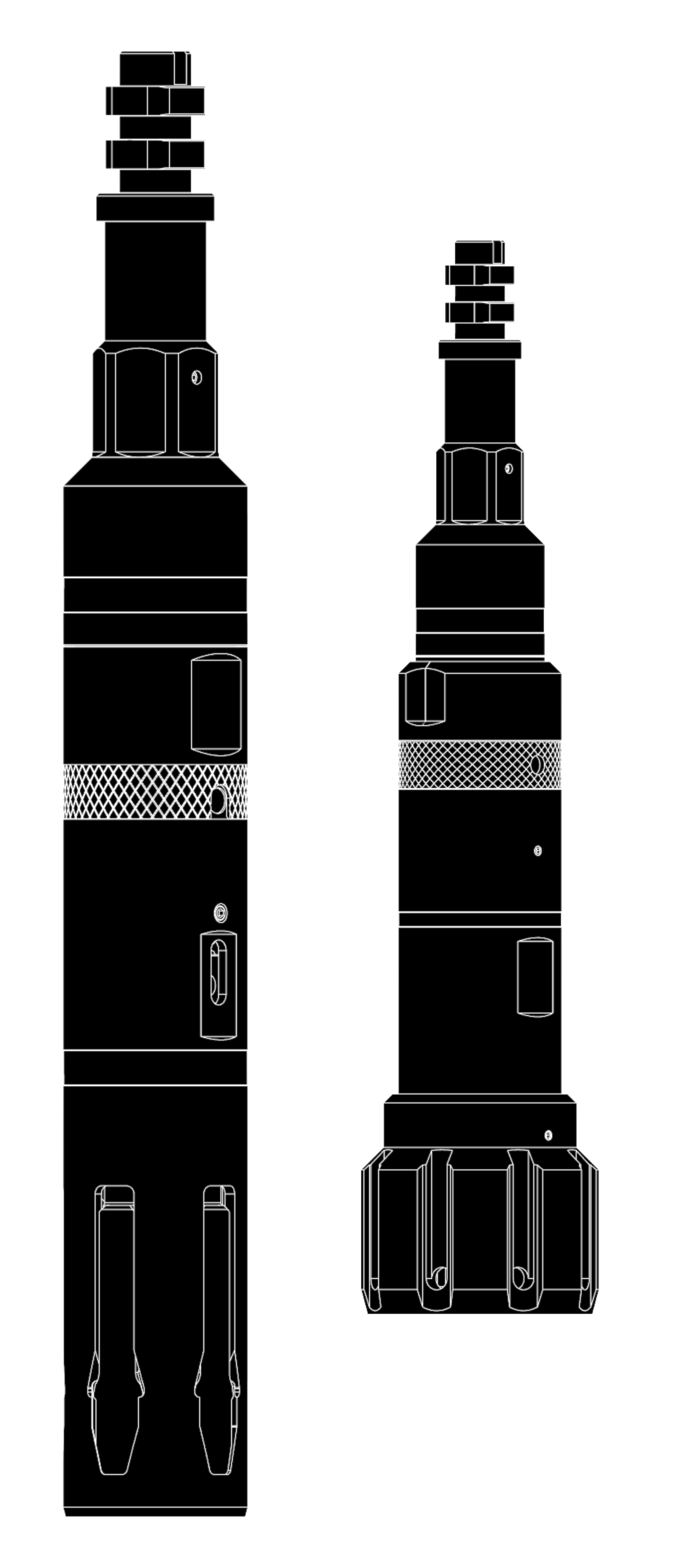

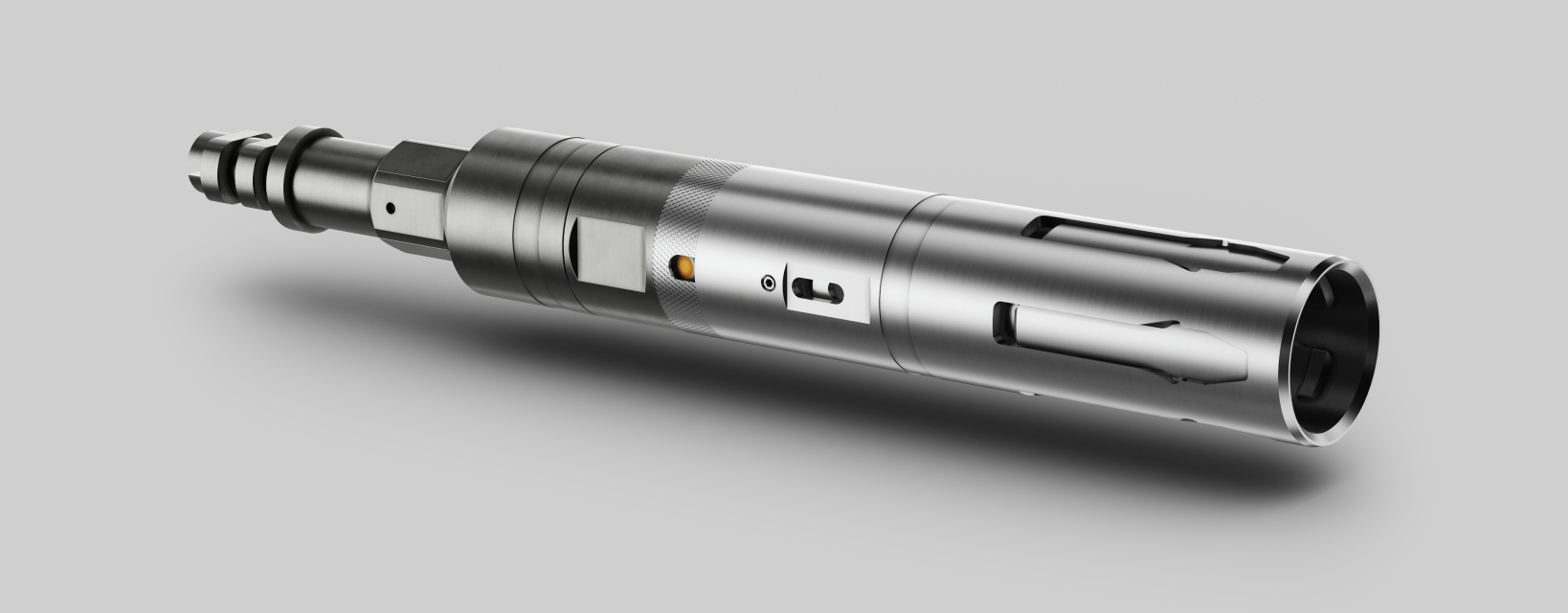

The rapidly re-dressable LiMAR SU (Shear Up) Pulling Tool is designed for the deployment, setting and retrieval of down hole items fitted with external type fish necks.

With the availability of a selection of cores, the SU Pulling Tool will engage and release against most industry standard fish necks with a jar up to release function. The OD of the SU Pulling Tool has been specifically designed to pass through the majority of No-Go nipple profiles whilst being able to maintain maximum strength through the assembly.

TOOL APPLICATIONS:

  • Deployment, setting and retrieval of items with external type fish necks

DESIGN FEATURES & BENEFITS:

  • Minimal components including one piece collet design
  • No requirement for pawls or small, hard-to-install parts
  • Simplistic, ergonomic design for rapid redress
  • Positive release mechanism for clean deployment and release
  • LiMAR Arm-Align® feature for quick and easy shear pin alignment
  • Specified cores supplied to suit all industry standard reaches
  • Slim running OD without compromising strength
  • Optional LiMAR® Multi-Action Shear Sub available for multiple, sequential shear direction options;
    • Shear Down
    • Shear Up
    • Jar-down indefinitely, jar-up indefinitely – Shear Down
  • Optional LiMAR® Bell Guide Housings available
  • Available in a range of sizes for various operational applications
  • Connection options to suit customer requirements
  • Simple, robust design ensuring ease of operation for the end user
  • Selected components QPQ treated
  • Hexagonal flats for safe make-up & break-out

Request a QuoteDownload Datasheet Share

TECHNICAL DATA

Assembly Part No.Actual ODFish NeckConnectionTo Engage Fish NeckMake up LengthReach B / S / J
7104-1500-RX-XXX-RX1.625"OptionalOptional1.187"17.00"1.26" / 1.80" / 2.55"
7104-2000-RX-XXX-RX1.765"OptionalOptional1.375"17.50"1.22" / 1.98" / 2.55"
7104-2500-RX-XXX-RX2.180"OptionalOptional1.750"17.75"1.20" / 1.98" / 2.55"
7104-3000-RX-XXX-RX2.720"OptionalOptional2.313"19.50"1.30" / 2.19" / 2.61"
7104-3500-RX-XXX-RX3.115"OptionalOptional2.750"19.50"1.35" / 2.10" / 2.60"
7104-4000-RX-XXX-RX3.600"OptionalOptional3.120"19.50"1.49" / 2.16" / 2.00"

RX - Denotes shear down with reach (RB - Long Core, Short Reach. RS - Intermediate Core, Medium Reach. RJ - Short Core, Long Reach.)
XXX - Last 3 digits of part number denotes connection type
For additional sizes or further information please contact sales
