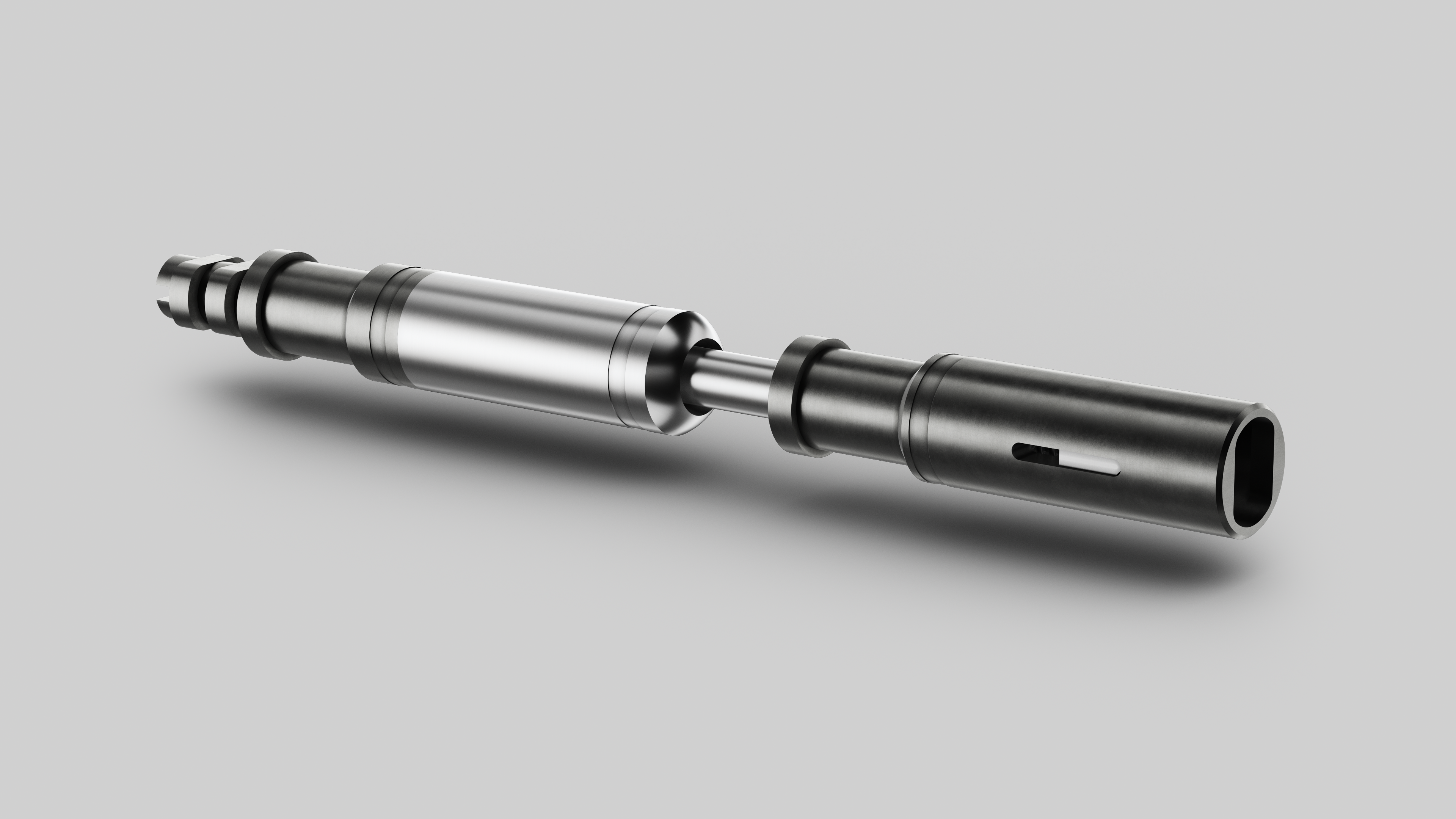

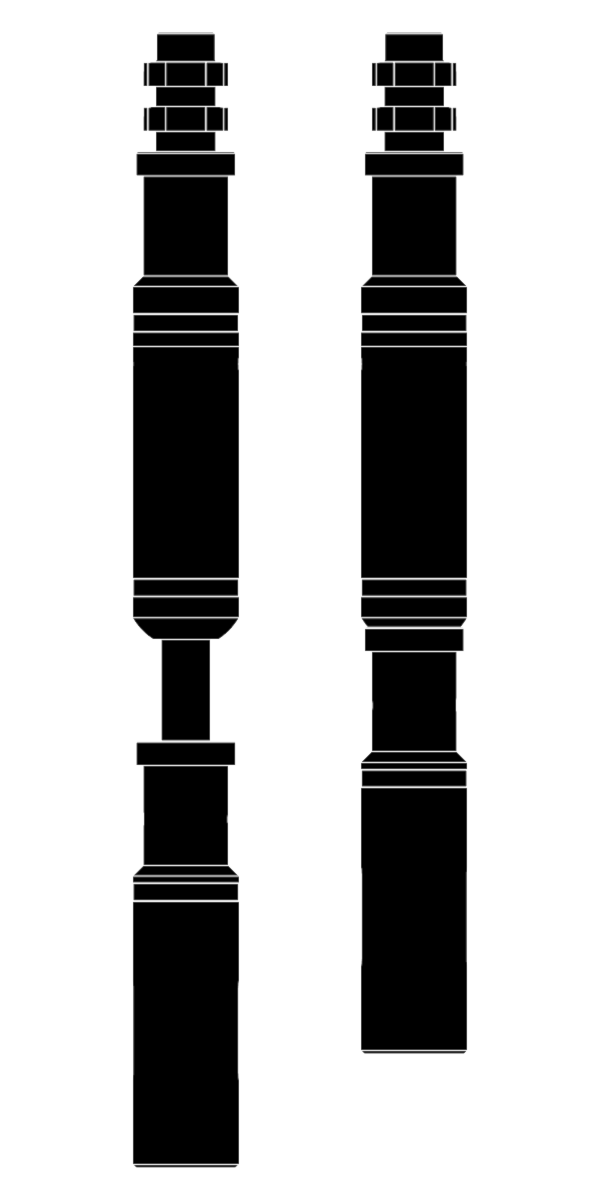

The LiMAR Knuckle Jar is designed to provide a point of flexibility along the length of a wireline toolstring as well as providing a short bi-directional mechanical jarring action.
The Knuckle Jar is often used within a toolstring to convey downhole data acquisition tools where a long stroke mechanical type jar may cause damage to the internal components of downhole gauges. Configuring a Knuckle Jar within the toolstring also enables it to pass unrestricted over nipple shoulders, tubing crossovers and other points where a rigid toolstring may encounter difficulty.
TOOL APPLICATIONS:
- To provide a point of flexibility and short stroke jarring action within a wireline toolstring
DESIGN FEATURES & BENEFITS:
- 10 degree deflection angle from centre line
- Contingent fish necks on lower components to enable recovery
- Connection options to suit customer requirements
- Simple, robust design ensuring ease of operation for the end user
- Selected components QPQ treated
- Hexagonal flats for safe make-up & break-out
TECHNICAL DATA
| Assembly Part No. | Actual OD | Fish Neck | Connection | Contingent Fish Neck | Stroke | Make up Length (Closed) |
| 1034-1250-XXX-RX | 1.250" | 1.187" | Optional | 1.187" | 2" | 13.37" (LQK) |
| 1034-1500-XXX-RX | 1.500" | 1.375" | Optional | 1.375" | 2" | 15.17" (LQK) |
| 1034-1750-XXX-RX | 1.750" | 1.375" | Optional | 1.375" | 2" | 15.50" (LQK) |
| 1034-1875-XXX-RX | 1.875" | 1.750" | Optional | 1.750" | 2" | 15.63" (LQK) |
| 1034-2125-XXX-RX | 2.125" | 1.750" | Optional | 1.750" | 2" | 15.88" (LQK) |
| 1034-2500-XXX-RX | 2.500" | 2.313" | Optional | 2.313" | 2" | 20.28" (LQK) |
XXX - Last 3 digits of part number denotes connection type
For additional sizes or further information please contact sales
