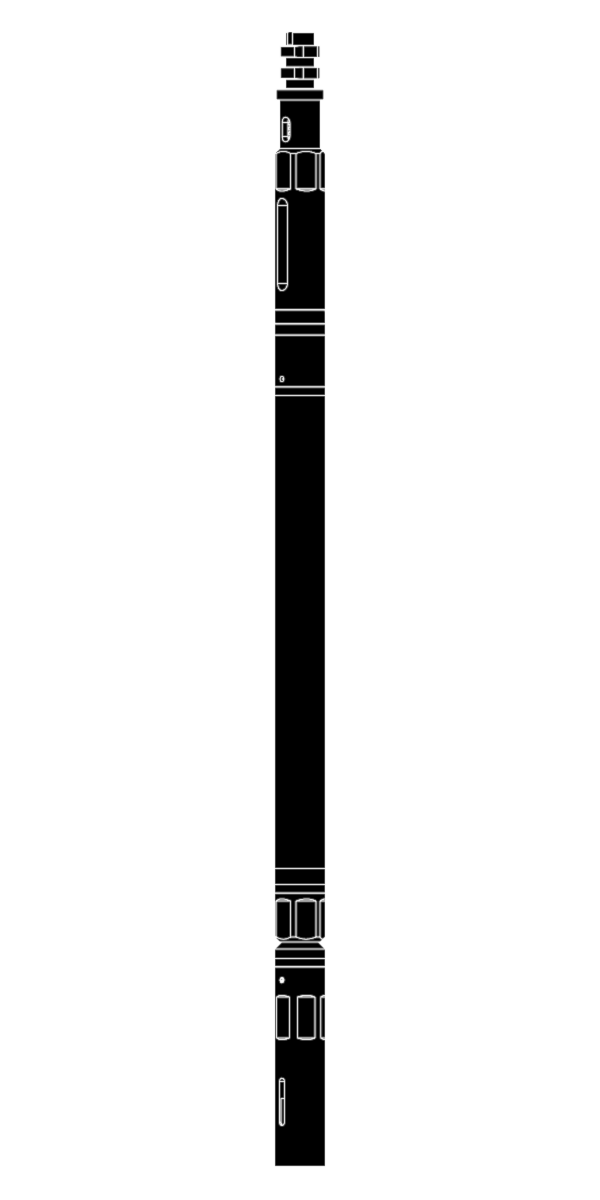

The LiMAR Oil Jar is designed to provide an upward jarring impact force when used in conjunction with a correctly matched LiMAR Accelerator Sub. The LiMAR Oil Jar is a modernised version of the traditional hydraulic jars with focus on strength, sealing quality and user-friendliness.
By maintaining an overpull, the oil within the Jar chamber is slowly metered until the close-tolerance piston reaches the larger internal ID. At this point the Slide Stem accelerates rapidly to ‘fire’ the toolstring upwards. The jar is then simply re-set / closed by setting down toolstring weight which moves the check valve and balance piston off seat, allowing fluid transfer to fully re-set the Oil Jar.
TOOL APPLICATIONS:
- For controlled, optimum upward jarring during the retrieval of downhole items
DESIGN FEATURES & BENEFITS:
- Available in industry standard toolstring sizes
- Suitable for use with a variety of viscosity oils to control jar release time in varied well temperatures
- Unique inverted jar design to increase moving mass for improved jar impact
- Balance piston chamber to limit well pressure effects
- Simplistic, ergonomic design for rapid redress
- Connection options to suit customer requirements
- Simple, robust design ensuring ease of operation for the end user
- Selected components QPQ treated
- Hexagonal flats for safe make-up & break-out
- Matched Accelerator Subs available to suit LiMAR® Jar range
TECHNICAL DATA
| Assembly Part No. | Actual OD | Fish Neck | Connection | Working Range |
| 1207-1250-XXX-RX | 1.250" | 1.187" | Optional | up to 800lbs |
| 1207-1500-XXX-RX | 1.500" | 1.375" | Optional | up to 1100lbs |
| 1207-1750-XXX-RX | 1.750" | 1.375" | Optional | up to 3000lbs |
| 1207-1875-XXX-RX | 1.875" | 1.750" | Optional | up to 3000lbs |
| 1207-2125-XXX-RX | 2.125" | 1.750" | Optional | up to 3000lbs |
| 1207-2500-XXX-RX | 2.500" | 2.313" | Optional | up to 7000lbs |
XXX - Last 3 digits of part number denotes connection type For additional sizes or further information please contact sales
