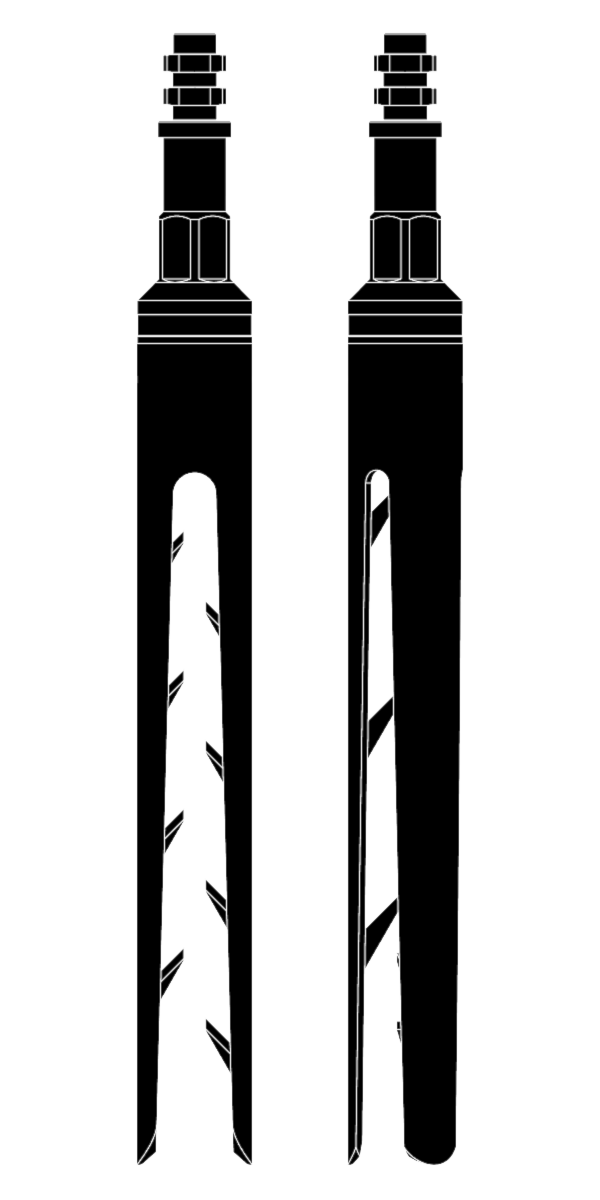

WIRE GRAB

The LiMAR Wire Grab is used during fishing operations to locate and retrieve parted slickline or braided line back to surface.

After locating and balling up the top of the parted wire the LiMAR® Wire Grab is then run to snag the wire in the upward facing barbs of the Grab arms. A jar up to release function directly above the Wire Grab provides a release point if the parted wire cannot be retrieved back to surface. The LiMAR® Universal Dummy Fish Neck or the LiMAR® SU Pulling Tool and Dummy Rope Socket arrangement are highly recommended options during wire recovery operations.

TOOL APPLICATIONS:

  • Used during fishing operations for retrieving parted wireline back to surface

DESIGN FEATURES & BENEFITS:

  • Available in a range of sizes to suit most completion designs
  • Interchangeable 2, 3 or 4 pronged Grab Arm options
  • Inventory reduction
  • Ideal for use in conjunction with LiMAR® Universal Dummy Fish Neck
  • Connection options to suit customer requirements
  • Simple, robust design ensuring ease of operation for the end user
  • Selected components QPQ treated
  • Hexagonal flats for safe make-up & break-out

Request a QuoteDownload Datasheet Share

TECHNICAL DATA

Assembly Part No.To Suit Tubing SizeActual ODProng Grab Arm OptionsFish NeckConnection
1020-XXXX-X-XXX-RX2-3/8"Optional2OptionalOptional
1020-XXXX-X-XXX-RX2-7/8"Optional2 or 3OptionalOptional
1020-XXXX-X-XXX-RX3-1/2"Optional2 or 3OptionalOptional
1020-XXXX-X-XXX-RX4"Optional2 or 3OptionalOptional
1020-XXXX-X-XXX-RX4-1/2"Optional2, 3 or 4OptionalOptional
1020-XXXX-X-XXX-RX5"Optional2, 3 or 4OptionalOptional
1020-XXXX-X-XXX-RX5-1/2"Optional2, 3 or 4OptionalOptional
1020-XXXX-X-XXX-RX7"Optional2, 3 or 4OptionalOptional

XXXX - denotes body OD
X - denotes number of grab arms
XXX- denotes connection type

For additional sizes or further information please contact sales
