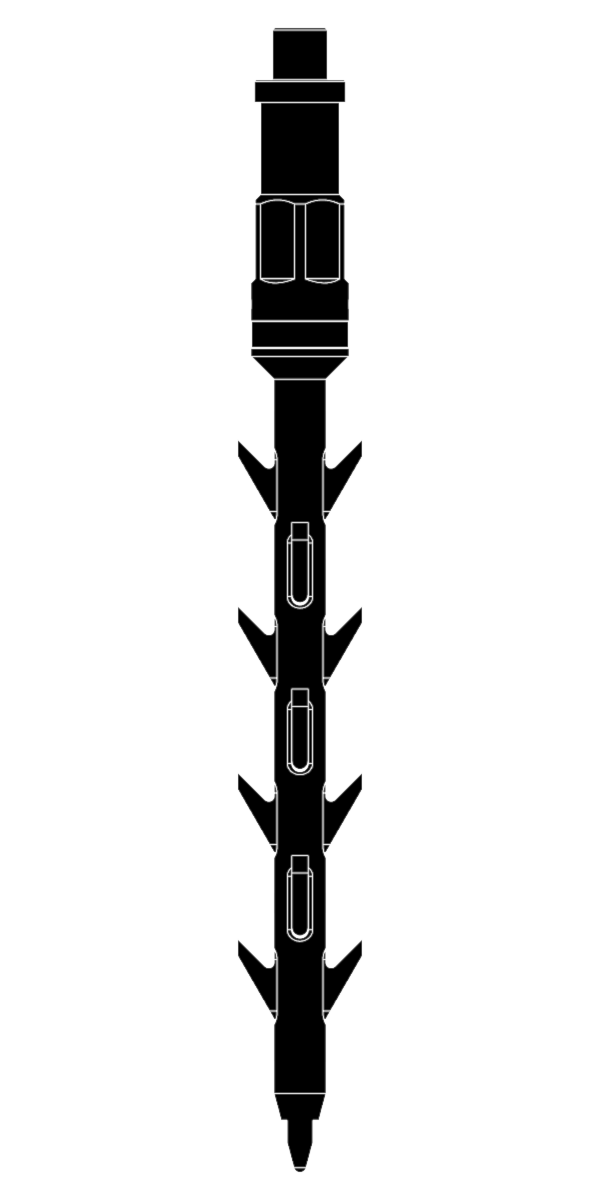

The LiMAR Centre Spear is used during fishing operations primarily to retrieve tightly compacted, parted slickline or braided cable to surface.
The Centre Spear is generally used when a traditional wire grab has been unsuccessful. The barbs, positioned around a centre mandrel allow for a more efficient penetration into a tight ball of wire, compared to the pronged arm style of a wire grab. As the Centre Spear is effectively non-releasable, it is generally run with a disconnect arrangement directly above it to provide a release feature if the parted wire cannot be retrieved back to surface.
TOOL APPLICATIONS:
- Used to retrieve tightly compacted, parted wireline to surface
DESIGN FEATURES & BENEFITS:
- Available in a range of sizes to suit all completion designs
- Ideal for use with LiMAR® Adjustable Wire Finder range
- Unique thru-welded barbs for added strength
- Simple, robust design ensuring ease of operation for the end user
- Connection options to suit customer requirements
- Selected components QPQ treated
- Hexagonal flats for safe make-up & break-out
TECHNICAL DATA
| Assembly Part No. | Nominal Tubing Size | Fish Neck | Connection |
| 1083-2375-XXX-RX | 2-3/8" | Optional | Optional |
| 1083-2875-XXX-RX | 2-7/8" | Optional | Optional |
| 1083-3500-XXX-RX | 3-1/2" | Optional | Optional |
| 1083-4000-XXX-RX | 4" | Optional | Optional |
| 1083-4500-XXX-RX | 4-1/2" | Optional | Optional |
| 1083-5000-XXX-RX | 5" | Optional | Optional |
| 1083-5500-XXX-RX | 5-1/2" | Optional | Optional |
| 1083-7000-XXX-RX | 7" | Optional | Optional |
XXX - Last 3 digits of part number denotes connection type
For additional sizes or further information please contact sales
