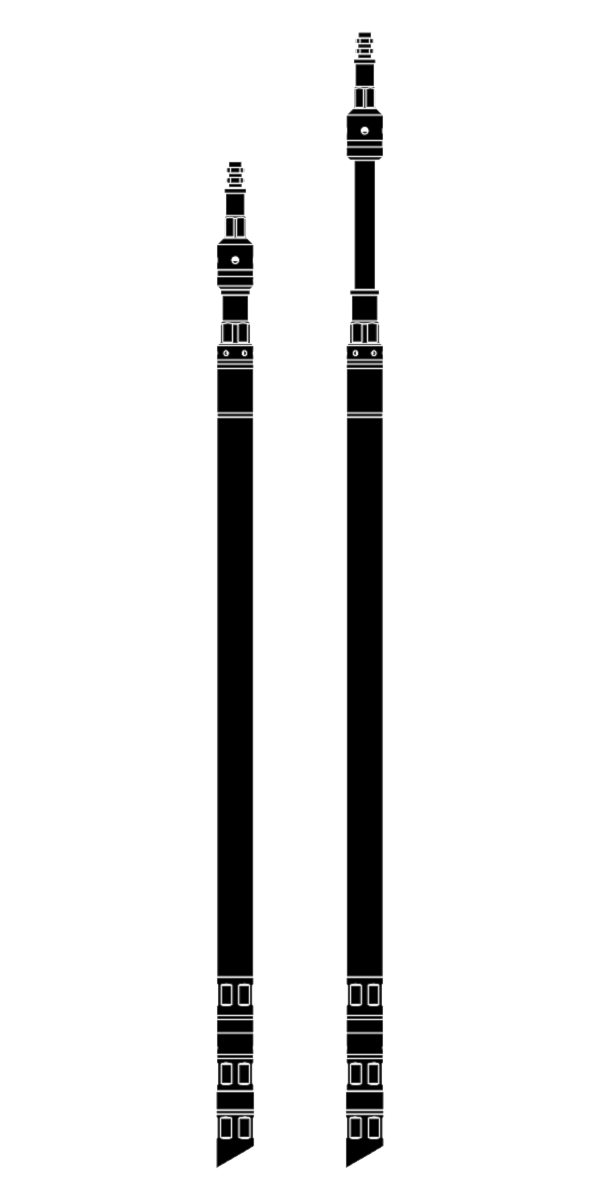

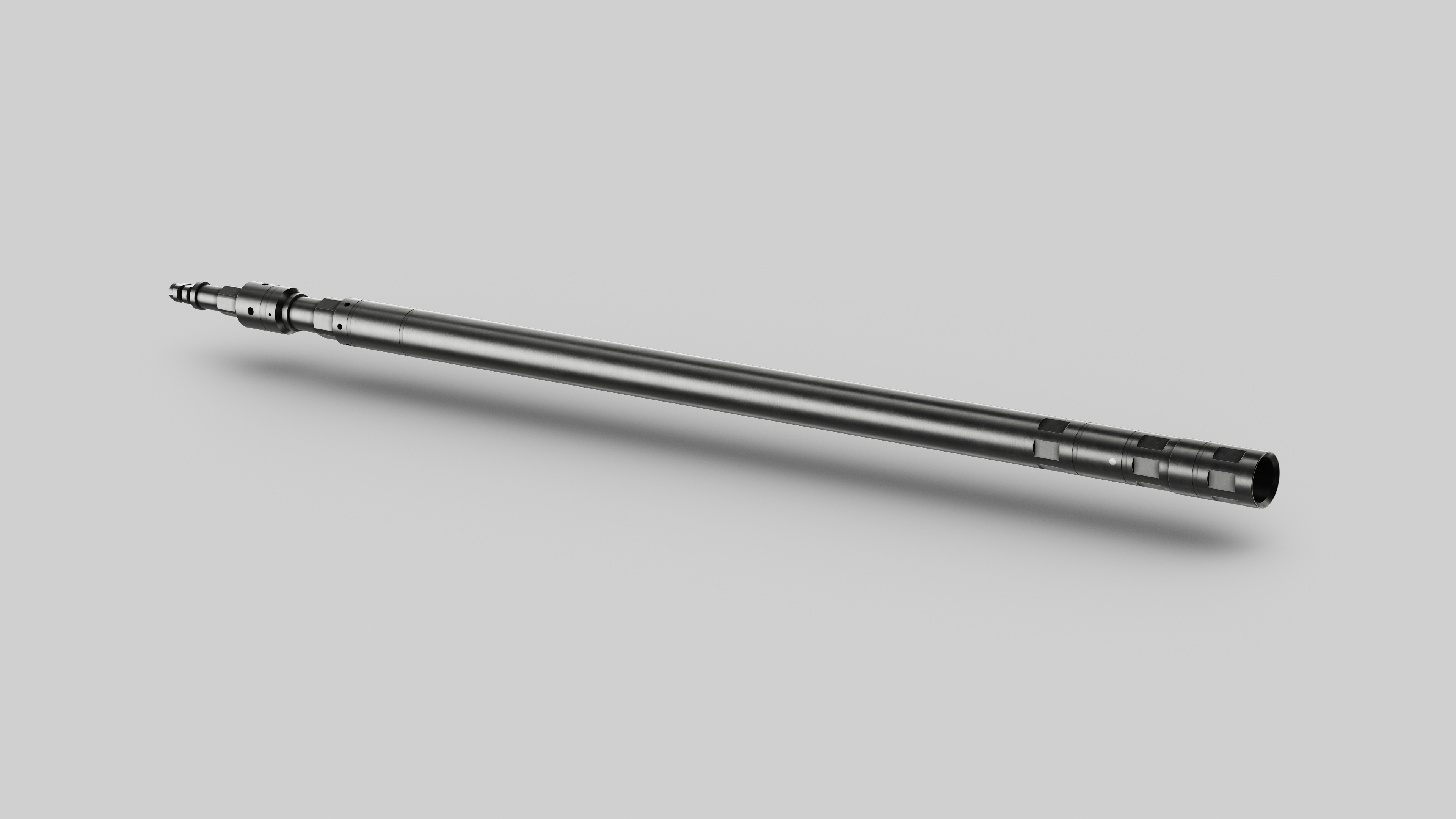

The LiMAR Sand Pump Bailer – Ball Type provides an effective and efficient method of recovering loose sand and debris from within the well bore.
The LiMAR Sand Pump Bailer incorporates a piston within a cylinder which when stroked upwards, draws the debris into the cylinder chamber. A check valve device prevents the debris from dropping out of the cylinder during recovery back to surface.
TOOL APPLICATIONS:
- For recovery of loose sand and debris from within the well bore
DESIGN FEATURES & BENEFITS:
- Optional bailer bottom shoes to suit customer requirements
- Drive Down Bailer conversion kits available
- Extension tubes available for increased capacity
- Flapper type check valve assemblies available upon request
- Connection options to suit customer requirements
- Simple, robust design ensuring ease of operation for the end user
- Selected components QPQ treated
- Hexagonal flats for safe make-up & break-out
TECHNICAL DATA
| Assembly Part No. | Actual OD | Fish Neck | Connection | Cylinder Volume | Bailer Stroke |
| 7016-1250-XXX-RX | 1.250" | Optional | Optional | 0.14 litre/ft | 37.59" |
| 7016-1500-XXX-RX | 1.500" | Optional | Optional | 0.25 litre/ft | 37.28" |
| 7016-1875-XXX-RX | 1.875" | Optional | Optional | 0.34 litre/ft | 36.76" |
| 7016-2375-XXX-RX | 2.375" | Optional | Optional | 0.58 litre/ft | 36.36" |
| 7016-2875-XXX-RX | 2.875" | Optional | Optional | 0.83 litre/ft | 35.58" |
| 7016-3500-XXX-RX | 3.500" | Optional | Optional | 1.29 litre/ft | 35.88" |
| 7016-4500-XXX-RX | 4.500" | Optional | Optional | 2.26 litre/ft | 34.15" |
XXX - Last 3 digits of part number denotes connection type
For additional sizes or further information please contact sales
