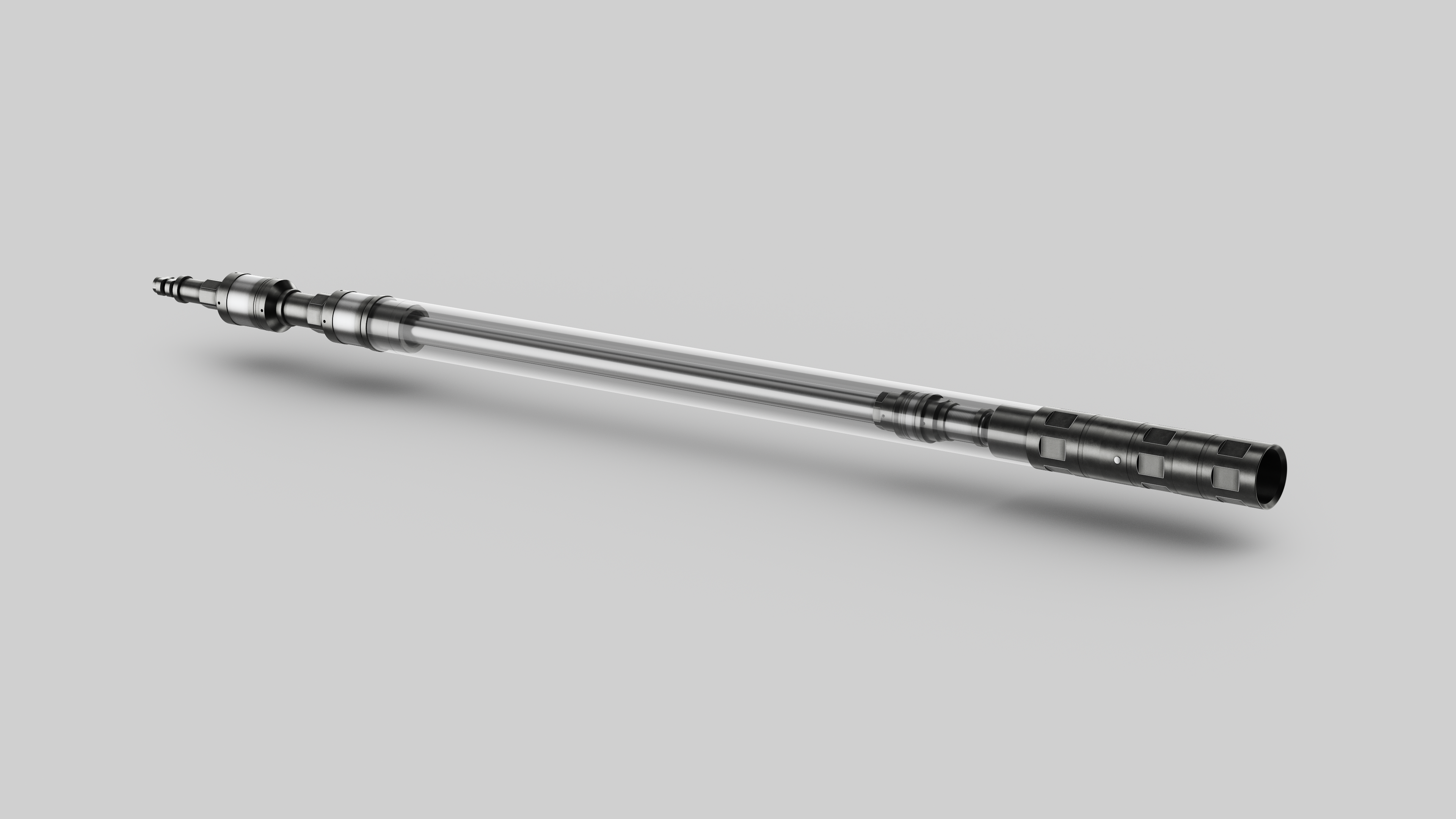

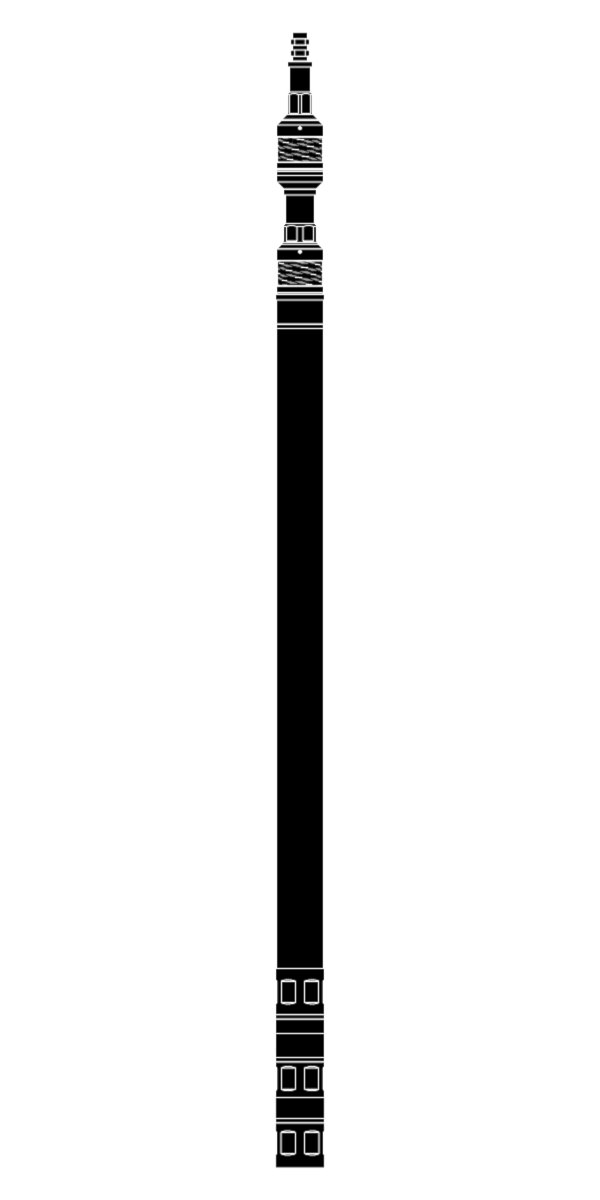

The LiMAR X>treme Bailer is a high performance, debris-tolerant pump bailer which carries all the features of the existing LiMAR Pump Bailer but with exceptional improvements, proven to rapidly recover debris such as frac sand without stalling the bailer.
The X>treme Bailer incorporates a high performance sealing piston arrangement within a honed cylinder which, when stroked upwards, efficiently draws debris into the cylinder chamber. Mesh sand-screen filters are supplied in varying micron ranges to protect all ingress points to maintain continued operation in dirty wells.
TOOL APPLICATIONS:
- Efficient, rapid recovery of debris including frac sand / proppant from within the well bore which is known to cause issues by interfering with moving components
DESIGN FEATURES & BENEFITS:
- Mesh, sand-screen filters at all ingress points to protect moving parts - 100 – 1000 micron filters available
- High performance, multi-durometer seal assembly and honed cylinder creating exceptional sealing and optimising rate of debris recovery
- Optional bailer bottom shoes to suit customer requirements
- Extension tubes available for increased capacity
- Flapper, Flutter or Finger type check valve assemblies available upon request
- Connection options to suit customer requirements
- Simple, robust design ensuring ease of operation for the end user
- Selected components QPQ treated
- Hexagonal flats for safe make-up & break-out
TECHNICAL DATA
| X>treme Bailer |
X>treme Bailers are available in a range of sizes and thread connections to suit client requirements
To order, please contact sales with details of the specifications below:
- Bailer Diameter
- Checking Device required – Ball, Flapper, Finger or Flutter Cage
- Connection
- Preferred Length
