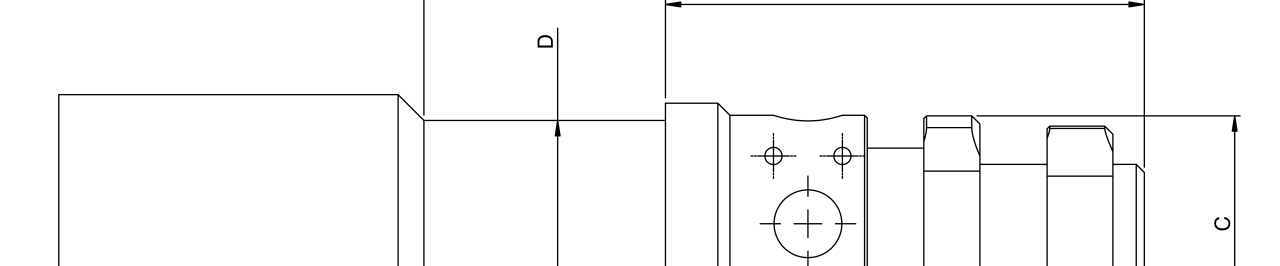

| Connection | Fish Neck | Tool OD | Standard Service | H2S Service | Length A | Length B | Diameter C | Diameter D | Pulling Tool to Recover | LiMAR Code | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SWL (lbs) | Yield (lbs) | UTS (lbs) | SWL (lbs) | Yield (lbs) | UTS (lbs) | |||||||||
| Connection | Fish Neck | Tool OD | Standard Service | H2S Service | Length A | Length B | Diameter C | Diameter D | Pulling Tool to Recover | LiMAR Code | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SWL (lbs) | Yield (lbs) | UTS (lbs) | SWL (lbs) | Yield (lbs) | UTS (lbs) | |||||||||
| Sucker Rod | ||||||||||||||
| 15/16" - 10 UN | 1.187" | 1.250" | 50,180 | 55,750 | 68,420 | 36,490 | 40,550 | 50,680 | 1.430" | 2.930" | 0.930" | 1.000" | LiMAR 1-1/2” Nom. SD (S Core), SU (S Core),Uni-Tool & 1-1/2” Nom HDPT. Camco® 1-5/8” Nom. JDS, JUS. Otis® 1-1/2” Nom. SS, RS | 084 |
| 15/16" - 10 UN | 1.375” | 1.500" | 54,450 | 60,500 | 74,250 | 39,600 | 44,000 | 55,000 | 1.430" | 2.930" | 0.930" | 1.187" | LiMAR 2" Nom. SD (S Core), SU (S Core), Uni-Tool & 2" Nom. HDPT. Camco® 2" Nom. JDS, JUS. Otis® 2" Nom. SS, RS | 041 |
1-1/16” – 10 UN | 1.750” | 1.865" | 72,000 | 80,000 | 98,180 | 52,360 | 58,180 | 72,730 | 1.430" | 3.180" | 1.055" | 1.500" | LiMAR 2-1/2" Nom. SD (S Core), SU (S Core), Uni-Tool & 2-1/2" Nom HDPT. Camco® 2-1/2" Nom. JDS, JUS. Otis® 2-1/2" Nom. SS, RS | 042 |
1-9/16” – 10 UN | 2.312” | 2.500" | 124,800 | 138,680 | 170,190 | 90,770 | 100,860 | 126,070 | 1.430" | 3.430" | 1.055" | 2.062" | LiMAR 3" Nom. SD (S Core), SU (S Core), Uni-Tool & 3" Nom HDPT. Camco® 3" Nom. JDS, JUS. Otis® 3" Nom. SS, RS | 043 |
| Connection | Fish Neck | Tool OD | Standard Service | H2S Service | Length A | Length B | Diameter C | Diameter D | Pulling Tool to Recover | LiMAR Code | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SWL (lbs) | Yield (lbs) | UTS (lbs) | SWL (lbs) | Yield (lbs) | UTS (lbs) | |||||||||
BQK (Button Quick K>nect) | ||||||||||||||
1-1/2" BQK | 1.375" | 1.500" | 59,400 | 66,000 | 81,000 | 43,200 | 48,000 | 60,000 | 2.873" | 4.373" | 1.252" | 1.187" | LiMAR 2" Nom. SD (H Core), SU (H Core), Uni-Tool (H Core) & 2" Nom HDPT | 045 |
1-7/8" BQK | 1.750" | 1.875" | 92,810 | 103,130 | 126,560 | 67,500 | 75,000 | 93,750 | 3.474" | 5.226" | 1.252" | 1.500" | LiMAR 2-1/2" Nom. SD (H Core), SU (H Core), Uni-Tool (H Core) & 2" Nom HDPT | 044 |
2-1/2" BQK | 2.312" | 2.500" | 165,830 | 184,250 | 226,130 | 120,600 | 134,000 | 167,500 | 4.531" | 6.531" | 1.252" | 2.062" | LiMAR 3" Nom. SD (H Core), SU (H Core), Uni-Tool (H Core) & 3" Nom HDPT | 046 |
| Connection | Fish Neck | Tool OD | Standard Service | H2S Service | Length A | Length B | Diameter C | Diameter D | Pulling Tool to Recover | LiMAR Code | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SWL (lbs) | Yield (lbs) | UTS (lbs) | SWL (lbs) | Yield (lbs) | UTS (lbs) | |||||||||
LQK (LiMAR Quick K>nect) | ||||||||||||||
1-1/4" LQK | 1.187" | 1.250" | 33,360 | 37,070 | 45,500 | 24,260 | 26,960 | 33,700 | 2.402" | 3.902" | 0.976" | 1.000" | LiMAR 1-1/2" Nom. SD (Q Core), SU (Q Core), Uni-Tool (Q Core) & 1-1/2" Nom HDPT | 182 |
1-1/2" LQK | 1.375" | 1.500" | 53,960 | 59,950 | 73,580 | 39,240 | 43,600 | 54,500 | 2.520" | 4.020" | 1.197" | 1.187" | LiMAR 2" Nom. SD (Q Core), SU (Q Core), Uni-Tool (Q Core) & 2" Nom HDPT | 047 |
1-7/8" LQK | 1.750" | 1.750" | 86,920 | 96,580 | 118,530 | 63,220 | 70,240 | 87,800 | 2.500" | 4.250" | 1.508" | 1.500" | LiMAR 2-1/2" Nom. SD (Q Core), SU (Q Core), Uni-Tool (Q Core) & 2-1/2" Nom HDPT | 048 |
2-1/2" LQK | 2.312" | 2.312" | 136,030 | 151,140 | 185,490 | 98,930 | 109,920 | 137,400 | 3.346" | 5.346" | 2.039" | 2.045" | LiMAR 3" Nom. SD (Q Core), SU (Q Core), Uni-Tool (Q Core) & 3" Nom HDPT | 049 |
| Connection | Fish Neck | Tool OD | Standard Service | H2S Service | Length A | Length B | Diameter C | Diameter D | Pulling Tool to Recover | LiMAR Code | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SWL (lbs) | Yield (lbs) | UTS (lbs) | SWL (lbs) | Yield (lbs) | UTS (lbs) | |||||||||
LQK-HD (LiMAR Quick K>nect - Heavy Duty) | ||||||||||||||
1-3/4" LQK-HD | 1.375" | 1.750" | 82,310 | 91,450 | 112,240 | 59,860 | 66,510 | 83,140 | 2.882" | 4.382" | 1.360" | 1.187" | LiMAR 2" Nom. HDPT | 182 |
2-1/8" LQK-HD | 1.750" | 2.125" | 115,450 | 128,270 | 157,430 | 83,960 | 93,290 | 116,610 | 3.209" | 4.959" | 1.628" | 1.500" | LiMAR 2-1/2" Nom. HDPT | 047 |
2-7/8" LQK-HD | 2.875" | 2.875" | 167,210 | 185,790 | 228,020 | 121,610 | 135,120 | 168,900 | 4.181" | 6.181" | 2.072" | 2.045" | LiMAR 3" Nom. HDPT | 048 |
| Connection | Fish Neck | Tool OD | Standard Service | H2S Service | Length A | Length B | Diameter C | Diameter D | Pulling Tool to Recover | LiMAR Code | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SWL (lbs) | Yield (lbs) | UTS (lbs) | SWL (lbs) | Yield (lbs) | UTS (lbs) | |||||||||
Tri-QK (Triple Quick K>nect) | ||||||||||||||
1-1/2" Tri-QK | 1.375" | 1.500" | 54,000 | 60,000 | 73,640 | 39,600 | 44,000 | 55,000 | 3.077" | 4.577" | 1.216" | 1.175" | LiMAR 2" Nom. SD (T Core), SU (T Core), Uni-Tool (T Core) & 2" Nom HDPT | 176 |
1-7/8" Tri-QK | 1.750" | 1.875" | 90,000 | 100,000 | 122,730 | 64,800 | 72,000 | 91,000 | 3.104" | 4.876" | 1.547" | 1.485" | LiMAR 2-1/2" Nom. SD (T Core), SU (T Core), Uni-Tool (T Core) & 2-1/2" Nom HDPT | 177 |
2-1/2" Tri-QK | 2.312" | 2.500" | 152,100 | 169,000 | 207,410 | 110,700 | 123,000 | 154,000 | 3.974" | 5.984" | 2.084" | 2.045" | LiMAR 3" Nom. SD (T Core), SU (T Core), Uni-Tool (T Core) & 3" Nom HDPT | 178 |
| Adjustable Spring Jar | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Toolstring | Connection | Adjustable Spring Jar Details | Accelerator Details | Stem / Mass Details | Jar Impact (lbs) | ||||||
| Range (lbs) | Stroke Length | Jar Setting (lbs) | Load | Range (lbs) | Stroke Length | Length (ft) | Weight | Stem Weight Total | |||
| |||||||||||
| 1.500" | 1-1/2" LQK | 300 to 1100 | 10.5" | 350 | Standard | 330 to 750 | 14" to 15" | N/A | N/A | N/A | 42,836 |
| 1.500" | 1-1/2" LQK | 300 to 1100 | 10.5" | Standard | 330 to 750 | 14" to 15" | 3 | 8kgs / 17lbs | 8kgs / 17lbs | 42,394 | |
| 1.500" | 1-1/2" LQK | 300 to 1100 | 10.5" | Standard | 330 to 750 | 14" to 15" | 5 | 13kgs / 29lbs | 13kgs / 29lbs | 51,141 | |
| 1.500" | 1-1/2" LQK | 300 to 1100 | 10.5" | Standard | 330 to 750 | 14" to 15" | 8 | 21kgs / 46lbs | 21kgs / 46lbs | 40,189 | |
| 1.500" | 1-1/2" LQK | 300 to 1100 | 10.5" | 750 | Standard | 330 to 750 | 14" to 15" | N/A | N/A | N/A | 40,189 |
| 1.500" | 1-1/2" LQK | 300 to 1100 | 10.5" | Standard | 330 to 750 | 14" to 15" | 3 | 8kgs / 17lbs | 8kgs / 17lbs | 49,013 | |
| 1.500" | 1-1/2" LQK | 300 to 1100 | 10.5" | Standard | 330 to 750 | 14" to 15" | 5 | 13kgs / 29lbs | 13kgs / 29lbs | 48,945 | |
| 1.500" | 1-1/2" LQK | 300 to 1100 | 10.5" | Standard | 330 to 750 | 14" to 15" | 8 | 21kgs / 46lbs | 21kgs / 46lbs | 57,534 | |
| 1.500" | 1-1/2" LQK | 300 to 1100 | 10.5" | 780 | High | 750 to 1100 | 11" to 14" | N/A | N/A | N/A | 48,617 |
| 1.500" | 1-1/2" LQK | 300 to 1100 | 10.5" | High | 750 to 1100 | 11" to 14" | 3 | 8kgs / 17lbs | 8kgs / 17lbs | 54,934 | |
| 1.500" | 1-1/2" LQK | 300 to 1100 | 10.5" | High | 750 to 1100 | 11" to 14" | 5 | 13kgs / 29lbs | 13kgs / 29lbs | 59,460 | |
| 1.500" | 1-1/2" LQK | 300 to 1100 | 10.5" | High | 750 to 1100 | 11" to 14" | 8 | 21kgs / 46lbs | 21kgs / 46lbs | 63,931 | |
| 1.500" | 1-1/2" LQK | 300 to 1100 | 10.5" | 1,110 | High | 750 to 1100 | 11" to 14" | N/A | N/A | N/A | 81,520 |
| 1.500" | 1-1/2" LQK | 300 to 1100 | 10.5" | High | 750 to 1100 | 11" to 14" | 3 | 8kgs / 17lbs | v | 83,320 | |
| 1.500" | 1-1/2" LQK | 300 to 1100 | 10.5" | High | 750 to 1100 | 11" to 14" | 5 | 13kgs / 29lbs | 13kgs / 29lbs | 75,472 | |
| 1.500" | 1-1/2" LQK | 300 to 1100 | 10.5" | High | 750 to 1100 | 11" to 14" | 8 | 21kgs / 46lbs | 21kgs / 46lbs | 67,626 | |
| Sure-Trip Jar | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Toolstring | Connection | Sure-Trip Jar Details | Accelerator Details | Stem / Mass Details | Jar Impact (lbs) | ||||||
| Range (lbs) | Stroke Length | Power Spring (lbs) | Load | Range (lbs) | Stroke Length | Length (ft) | Weight | Stem Weight Total | |||
| |||||||||||
| 1.500" | 1-1/2" LQK | 300 to 1100 | 6.61" | 700 | Standard | 330 to 750 | 14" to 15" | N/A | N/A | N/A | 39,553 |
| 1.500" | 1-1/2" LQK | 300 to 1100 | 6.61" | Standard | 330 to 750 | 14" to 15" | 3 | 8kgs / 17lbs | 8kgs / 17lbs | 43,593 | |
| 1.500" | 1-1/2" LQK | 300 to 1100 | 6.61" | Standard | 330 to 750 | 14" to 15" | 5 | 13kgs / 29lbs | 13kgs / 29lbs | 34,828 | |
| 1.500" | 1-1/2" LQK | 300 to 1100 | 6.61" | Standard | 330 to 750 | 14" to 15" | 8 | 21kgs / 46lbs | 21kgs / 46lbs | 38,289 | |
| 1.500" | 1-1/2" LQK | 300 to 1100 | 6.61" | 900 | High | 750 to 1100 | 14" to 15" | N/A | N/A | N/A | 56,752 |
| 1.500" | 1-1/2" LQK | 300 to 1100 | 6.61" | High | 750 to 1100 | 14" to 15" | 3 | 8kgs / 17lbs | 8kgs / 17lbs | 50,579 | |
| 1.500" | 1-1/2" LQK | 300 to 1100 | 6.61" | High | 750 to 1100 | 114" to 15" | 5 | 13kgs / 29lbs | 13kgs / 29lbs | 49,662 | |
| 1.500" | 1-1/2" LQK | 300 to 1100 | 6.61" | High | 750 to 1100 | 14" to 15" | 8 | 21kgs / 46lbs | 21kgs / 46lbs | 51,075 | |
