SURFACE HANDLING TOOL

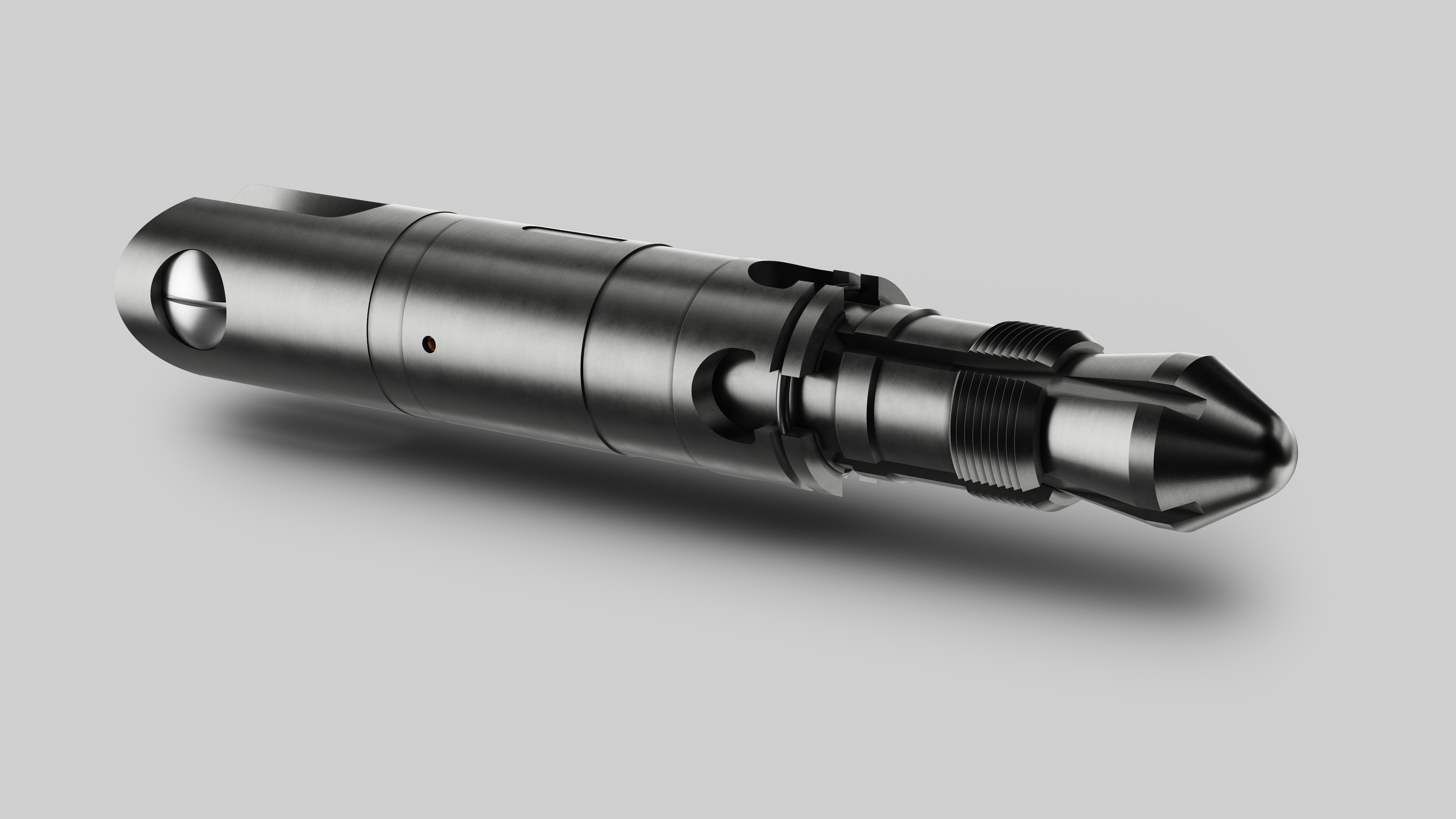

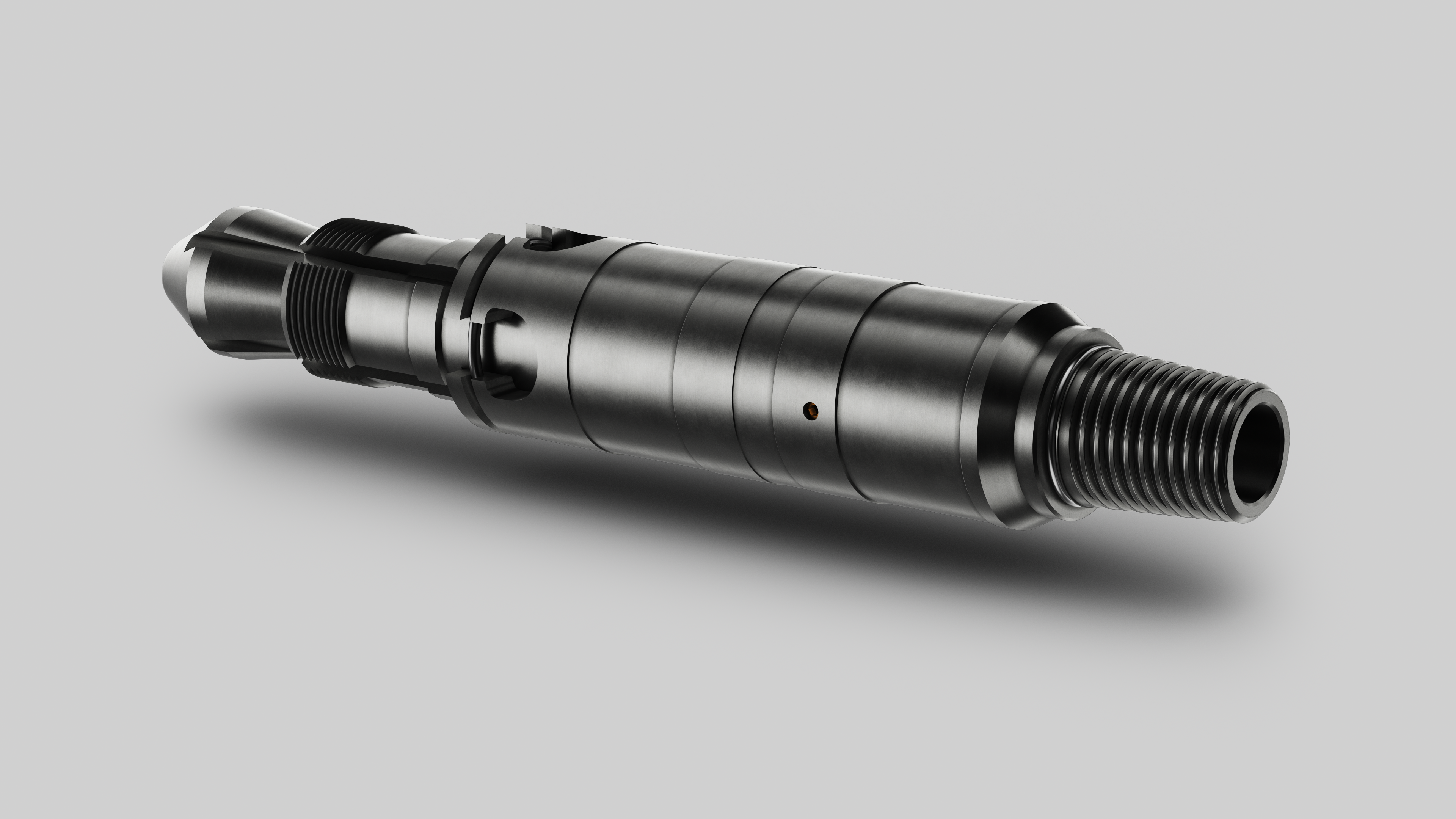

The LiMAR Surface Handling Tool is designed to provide a safe and reliable connection to Coiled Tubing during stabbing or surface handling applications.

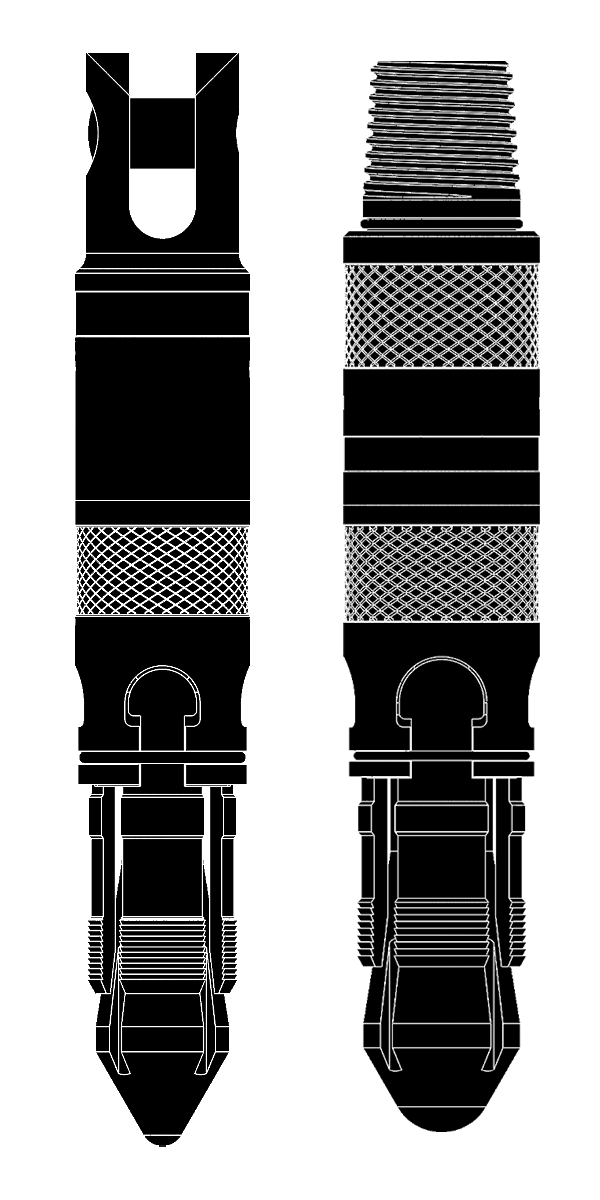

The tool features a double knuckle joint which is capable of bending to a radius of approximately 26" ensuring that even with the shortest goosenecks the tool can safely conform to the radius without any excessive sideward loading. As a means of quickly and safely connecting to the Coiled Tubing, the surface handling tool includes a grooved roll-on connection which allows the connector to be installed without the need to remove the weld seam from the Coiled Tubing.

TOOL APPLICATIONS:

  • To provide a quick and safe connection to the Coiled Tubing during surface handling operations

DESIGN FEATURES & BENEFITS:

  • Available in a range of sizes to suit industry standard CT string OD’s
  • 10 degree deflection angle from centre line
  • Extremely small bend radius, compatible with all gooseneck sizes
  • Thru bore to allow string displacement
  • Sealing ball joint
  • Simple, robust design ensuring ease of operation for the end user
  • Selected components QPQ treated
  • Hexagonal flats for safe make-up & break-out
  • Corrosion resistant materials

Request a QuoteDownload Datasheet Share

TECHNICAL DATA

Assembly Part No.Actual ODMake up Length
196-1500-XXXX-RX1.500"15.7"
196-1750-XXXX-RX1.750"15.7"
196-2000-XXXX-RX2.000"15.7"
196-2375-XXXX-RX2.375"16.3"
196-2875-XXXX-RX2.875"18.0"

The Surface Handling Tool is available to suit all CT sizes & wall thicknesses.
To order, please contact sales with details of the specifications below:

  • Coiled Tubing Diameter
  • Wall Thickness
