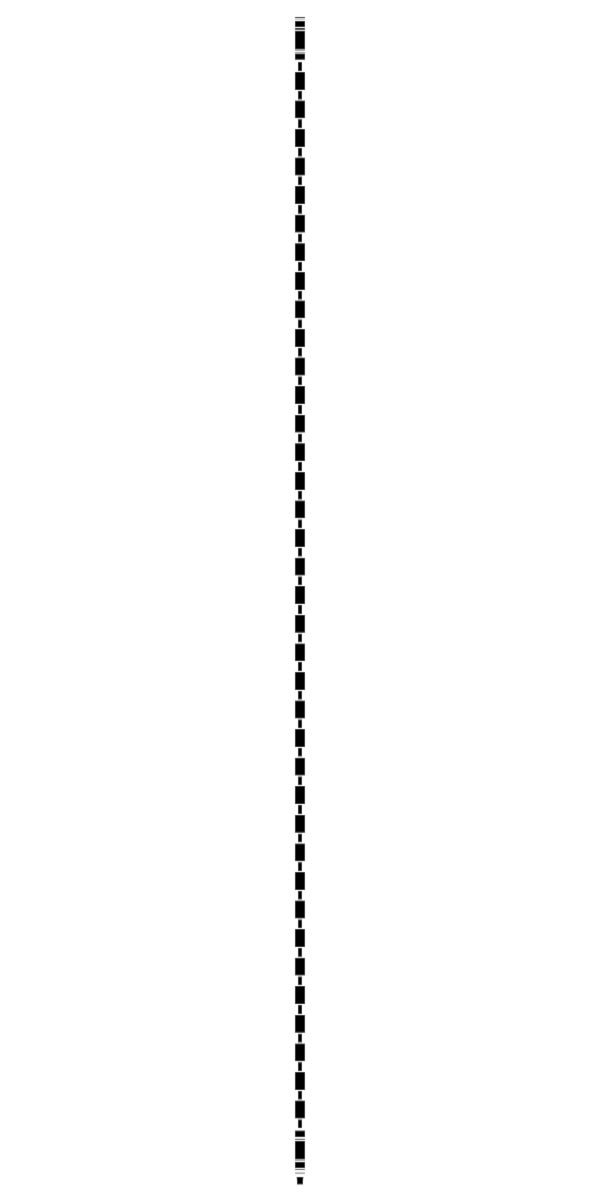

The LiMAR Stabbing Snake is designed to aid in manual stabbing operations where the use of winch is not possible.
The Stabbing Snake incorporates a number of lead ferrules equally spaced along a 10 tonne rated cable to allow maximum flexibility and provide an extremely user friendly solution to feeding coiled tubing into the injector head. The Stabbing snake is available with a range of inline Coiled Tubing Connectors and various designs of bull-nose to suit every eventuality.
TOOL APPLICATIONS:
- Manual Coiled Tubing stabbing operations
DESIGN FEATURES & BENEFITS:
- Available in a range of sizes to suit industry standard CT string OD’s
- Available in any length to suit the user’s needs
- Range of CT Connectors and Bullnoses available to suit
- Extremely small bend radius, compatible with all gooseneck sizes
- Simple, robust design ensuring ease of operation for the end user
- Hexagonal flats for safe make-up & break-out
- Corrosion resistant materials
TECHNICAL DATA
| Assembly Part No. | Actual OD |
| 234-1250-XXXX-XXX-RX | 1.250" |
| 234-1500-XXXX-XXX-RX | 1.500" |
| 234-1750-XXXX-XXX-RX | 1.750" |
| 234-2000-XXXX-XXX-RX | 2.000" |
| 234-2375-XXXX-XXX-RX | 2.375" |
XXXX - Denotes length
XXX - Last 3 digits of part number denotes connection type
To order, please contact sales with details of the specifications below:
- Tool Outer Diameter
- Wall Thickness
- Thread Connection
- Assembly Length
