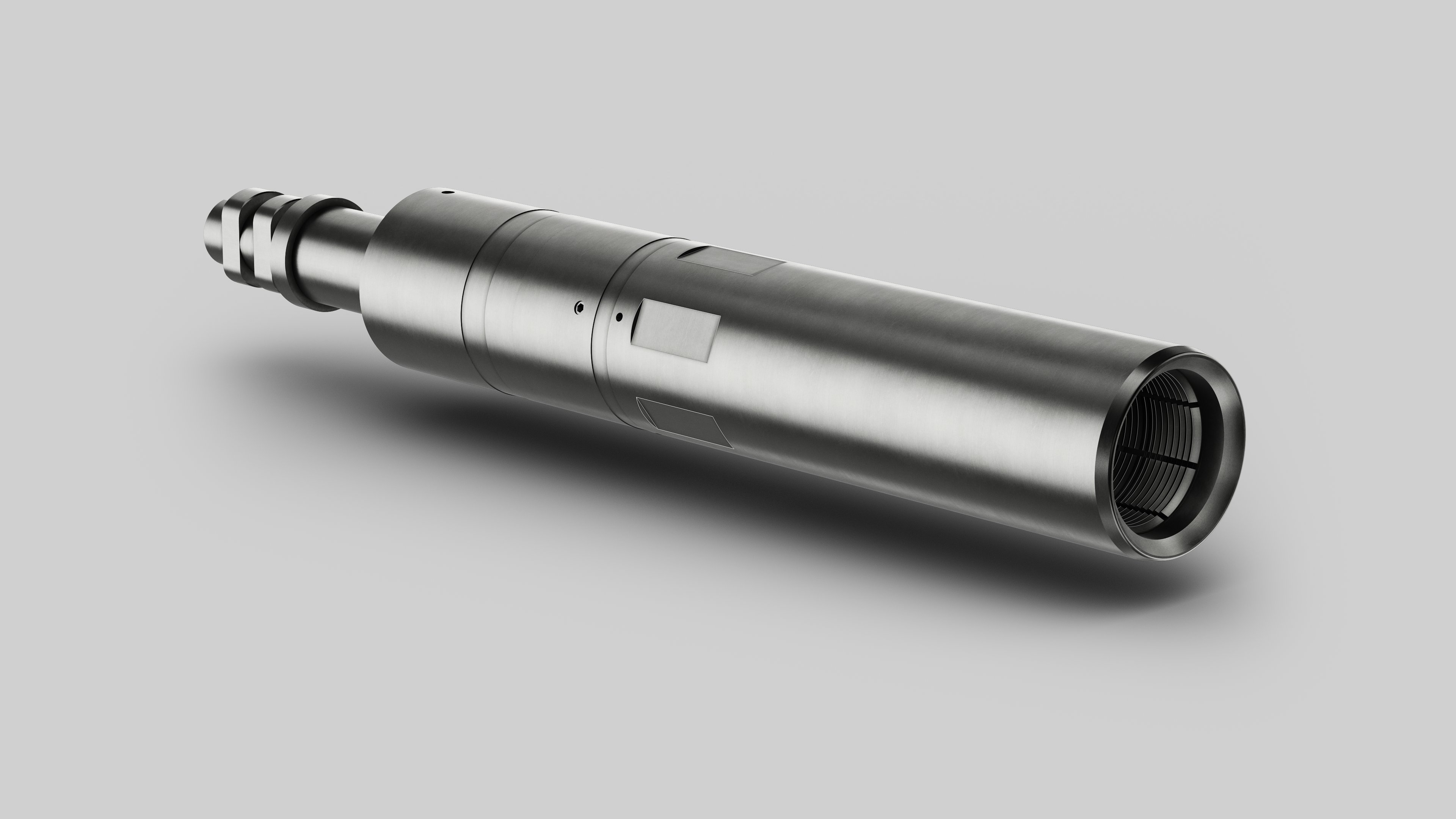

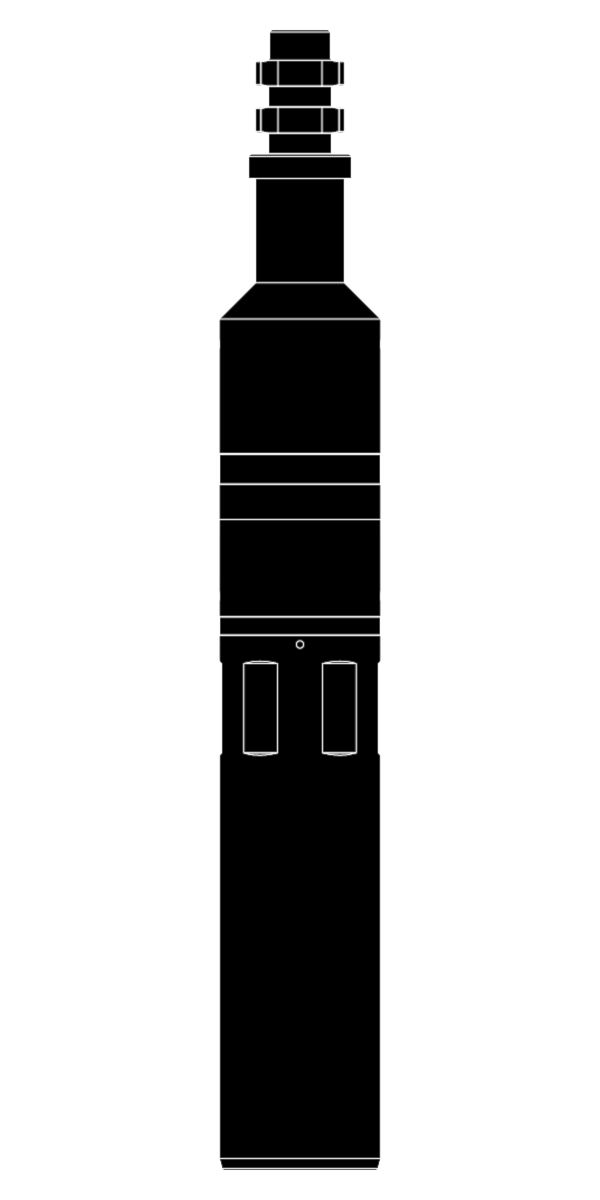

The LiMAR Non-Releasable Overshot is designed to engage and recover items with missing or damaged external type fish necks.
Incrementally sized grapples can be selected to suit the outside diameter of the fish whilst the adjustable core feature of the Overshot can be altered to suit the reach required to engage the fish. Due to the interchangeable nature between the LiMAR® Releasable and Non-Releasable Overshot versions, the top sub can also be removed and fitted with a releasable type top sub for both running and retrieval.
TOOL APPLICATIONS:
- Recovery of items with damaged or missing external fish necks
DESIGN FEATURES & BENEFITS:
- Inventory reduction through multi-functional components
- Adjustable reach core to alter fish engagement point
- Interchangeable top sub for configuring as a releasable version
- Interchangeable grapples between releasable and non-releasable versions
- Optional external or internal type running necks
- Customisable grapples available to suit client requirements
- Optional LIMAR® Bell Guide Housings available
- Connection options to suit customer requirements
- Simple, robust design ensuring ease of operation for the end user
- Selected components QPQ treated
- Hexagonal flats for safe make-up & break-out
TECHNICAL DATA
| Assembly Part No. | Actual OD | Fish Neck | Connection | Collet Range |
| 7043-1750-XXX-RX | 1.750" | Optional | Optional | 0.313"- 1.312" |
| 7043-2220-XXX-RX | 2.220" | Optional | Optional | 0.313"- 1.750" |
| 7043-2625-XXX-RX | 2.625" | Optional | Optional | 0.313"- 2.500" |
| 7043-2720-XXX-RX | 2.720" | Optional | Optional | 0.313"- 2.125" |
| 7043-3220-XXX-RX | 3.220" | Optional | Optional | 0.313"- 2.625" |
| 7043-3700-XXX-RX | 3.700" | Optional | Optional | 0.313"- 2.875" |
| 7043-4150-XXX-RX | 4.150" | Optional | Optional | 0.313"- 3.188" |
| 7043-4500-XXX-RX | 4.500" | Optional | Optional | 0.438"- 3.625" |
| 7043-4625-XXX-RX | 4.625" | Optional | Optional | 0.438"- 3.813" |
| 7043-5830-XXX-RX | 5.830" | Optional | Optional | 0.438"- 5.625" |
XXX - Last 3 digits of part number denotes connection type
For additional sizes or further information please contact sales
