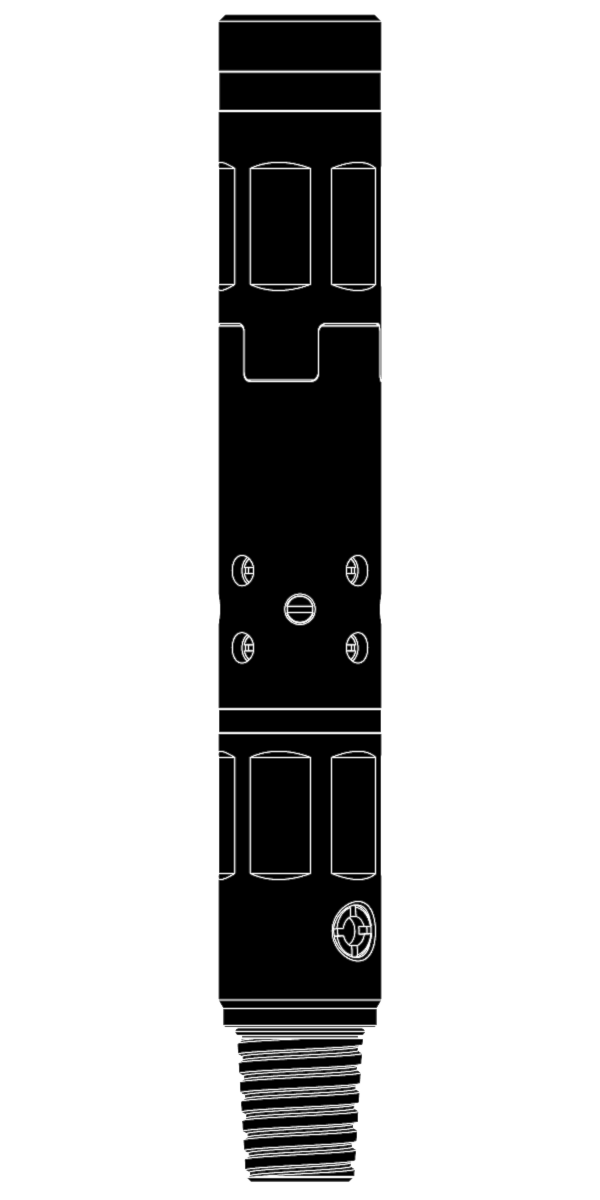

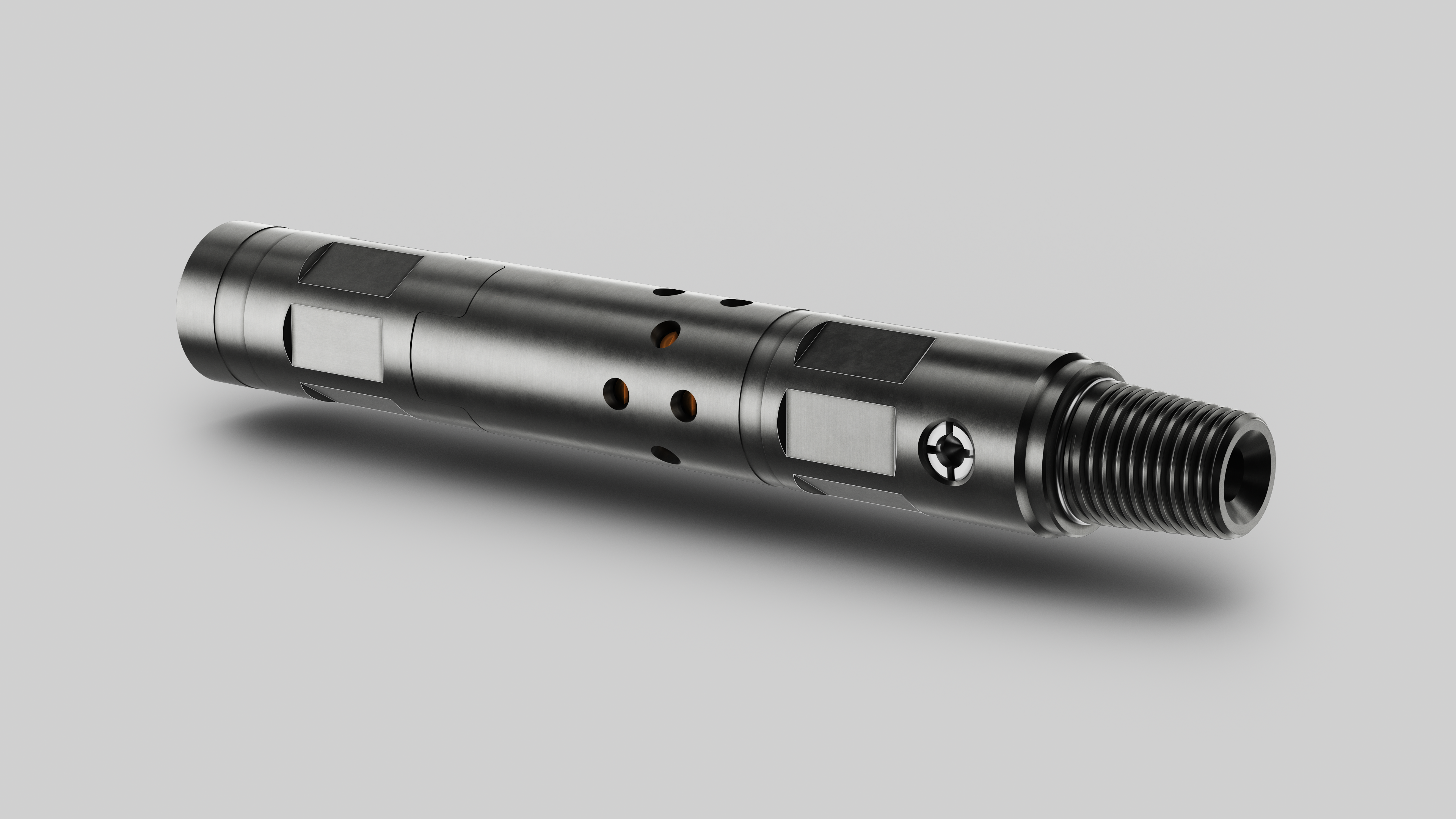

The LiMAR Shear Release Disconnect is designed to provide a mechanical release point within a Coiled Tubing BHA.
If a Coiled Tubing BHA becomes inadvertently stuck down hole, an overpull will shear a pre-determined number of shear screws to allow the upper section to disconnect from the lower assembly, leaving a standard GS internal type fish neck profile for future retrieval of the lower BHA section.
TOOL APPLICATIONS:
- For use as a contingent release mechanism in a Coiled Tubing BHA
DESIGN FEATURES & BENEFITS:
- Available in a range of sizes to suit industry standard Coiled Tubing diameters and BHA’s
- High torque rating
- Large thru bore
- Multiple shear screw options for operational flexibility
- Short make-up length
- Disconnect Sub fitted with standard GS type internal fish neck profile
- Simple, robust design ensuring ease of operation for the end user
- Selected components QPQ treated
- Hexagonal flats for safe make-up & break-out
- Connection options to suit customer requirements
- Corrosion resistant materials
TECHNICAL DATA
| Assembly Part No. | Actual OD | Maximum ID | Disconnect GS Profile | Make up Length |
| 146-1687-XXX-RX | 1.687" | 0.625" | 1-1/2" | 11.50" |
| 146-1750-XXX-RX | 1.750" | 0.625" | 1-1/2" | 11.50" |
| 146-2125-XXX-RX | 2.125" | 0.812" | 2" | 12.73" |
| 146-2375-XXX-RX | 2.375" | 0.812" | 2" | 12.73" |
| 146-2875-XXX-RX | 2.875" | 1.375" | 3" | 16.13" |
XXX - Last 3 digits of part number denotes connection type - Please refer to the connection code data sheet. For additional sizes or further information please contact sales
