The LiMAR Internal Torque Thru (LITT) Connector is a Coiled Tubing Connector designed for attaching the Coiled Tubing to the Bottom Hole Assembly
The torque thru profile makes the LITT Connector ideal for use during operations such as milling. Once the Coiled Tubing has been prepared using the LiMAR® Reamer System, the Connector is installed into the open end of the Coiled Tubing and correctly aligned in the Connector. The forming of the Coiled Tubing wall into the recess profiles on the LITT Connector is achieved by using the LiMAR® Manual or Hydraulic LITT Connector Jig.
TOOL APPLICATIONS:
- To provide a slim, high strength, high torque-thru connection between the Coiled Tubing and BHA
DESIGN FEATURES & BENEFITS:
- Slim running OD
- High pressure / high temperature options available
- Available in a range of sizes to suit industry standard Coiled Tubing diameters and BHA’s
- Simple, robust design ensuring ease of operation for the end user
- Selected components QPQ treated
- Hexagonal flats for safe make-up & break-out
- Connection options to suit customer requirements
- Corrosion resistant materials
TECHNICAL DATA

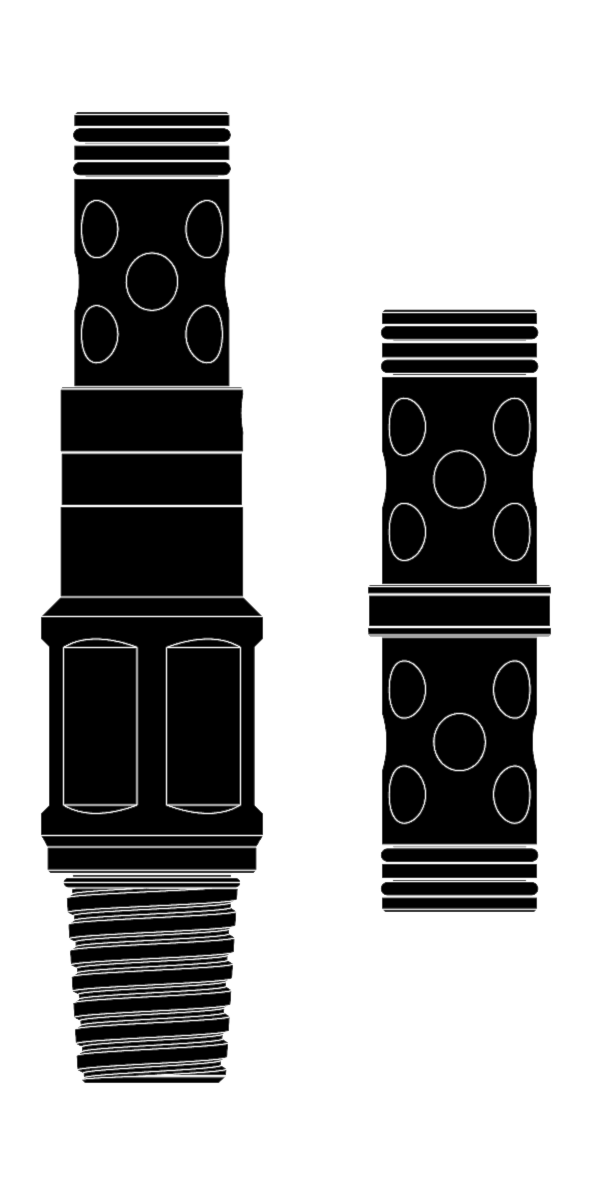

| 142 - LITT X Thread Connector |
The LITT x Thread Connector is available to suit all CT sizes & wall thicknesses, to be supplied with thread connections as per customer requirements. To order, please contact sales with details of the specifications below:
- Coiled Tubing Diameter
- Wall Thickness
- Thread Connection
| 248 - LITT X LITT Connector |
The LITT X LITT Connector is available to suit all CT sizes & wall thicknesses as per customer requirements. To order, please contact saleswith details of the specifications below:
- Coiled Tubing Diameter
- Wall Thickness
