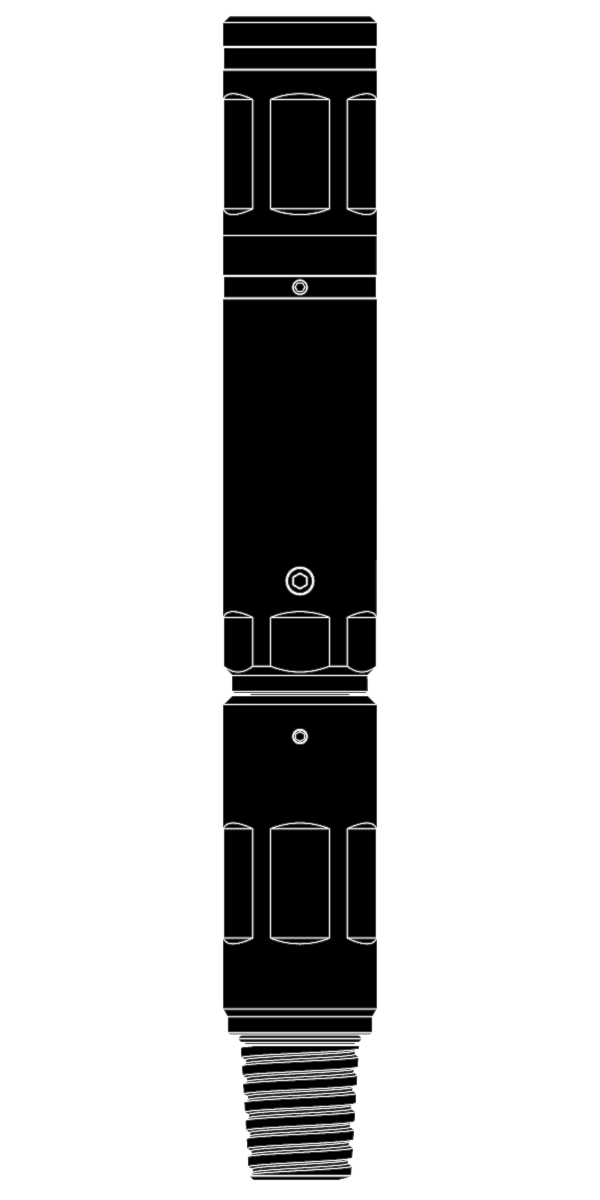

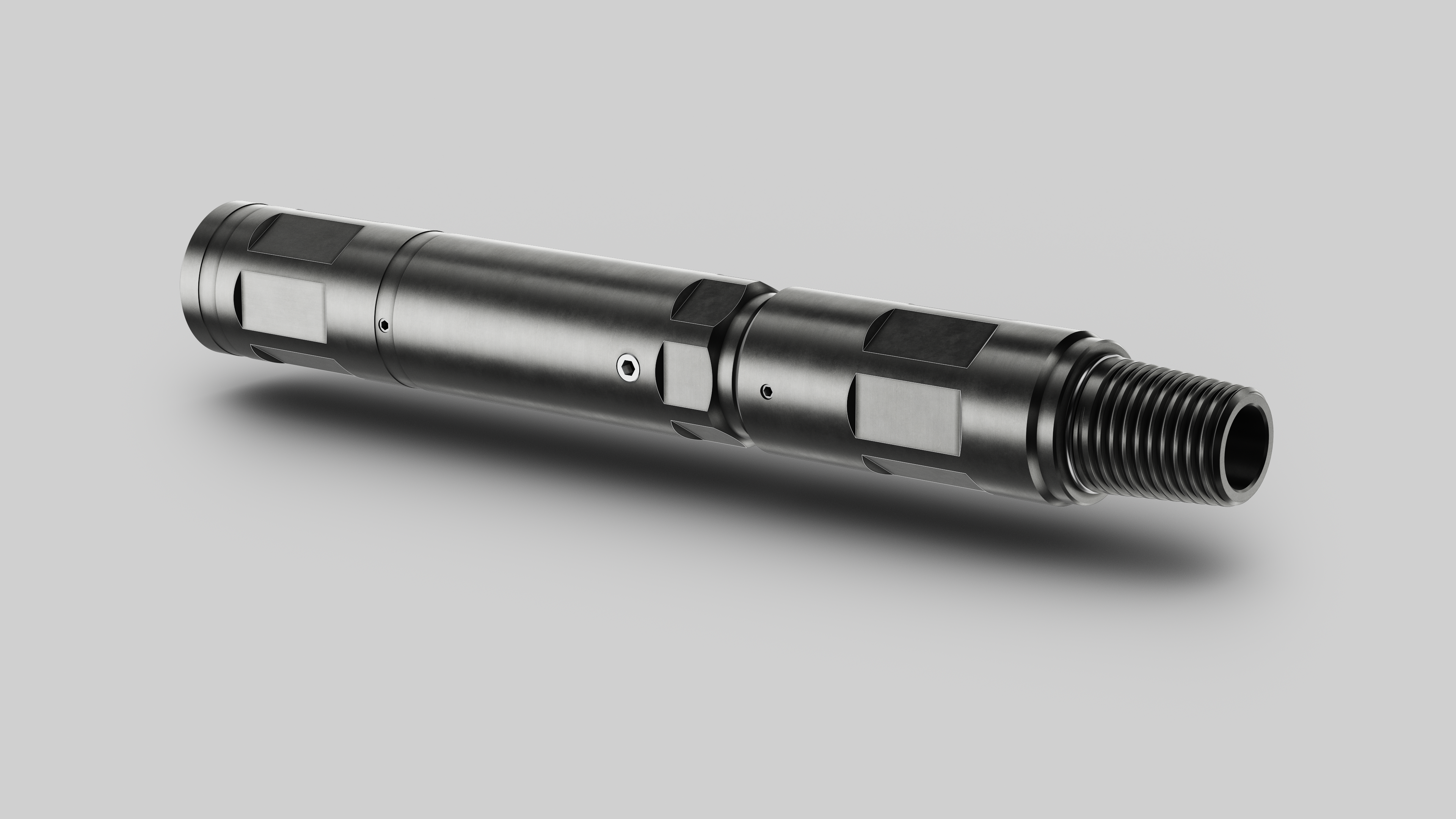

The LiMAR Flo-Thru Swivel Joint provides bearing assisted rotation when making up the Bottom Hole Assembly (BHA).
The Flo-Thru Swivel Joint allows the lower BHA to be clamped stationary and connected to the upper BHA without rotation being applied to either section.
TOOL APPLICATIONS:
- To allow the BHA to rotate freely under load and eliminate torque build-up
DESIGN FEATURES & BENEFITS:
- Supplied in industry standard OD’s
- Hard wearing phosphor bronze bushings to enhance tool rotation and prolong working life
- Service port for injecting lubricant
- Connection options to suit customer requirements
- Simple, robust design ensuring ease of operation for the end user
- Selected components QPQ treated
- Hexagonal flats for safe make-up & break-out
- Corrosion resistant materials
TECHNICAL DATA
| Assembly Part No. | Actual OD | Maximum ID | Make up Length |
| 145-1750-XXX-RX | 1.750" | 0.681" | 13.50" |
| 145-2125-XXX-RX | 2.125" | 1.000" | 14.00" |
| 145-2875-XXX-RX | 2.875" | 1.437" | 15.00" |
XXX - Last 3 digits of part number denotes connection type - Please refer to the connection code data sheet. For additional sizes or further information please contact sales
