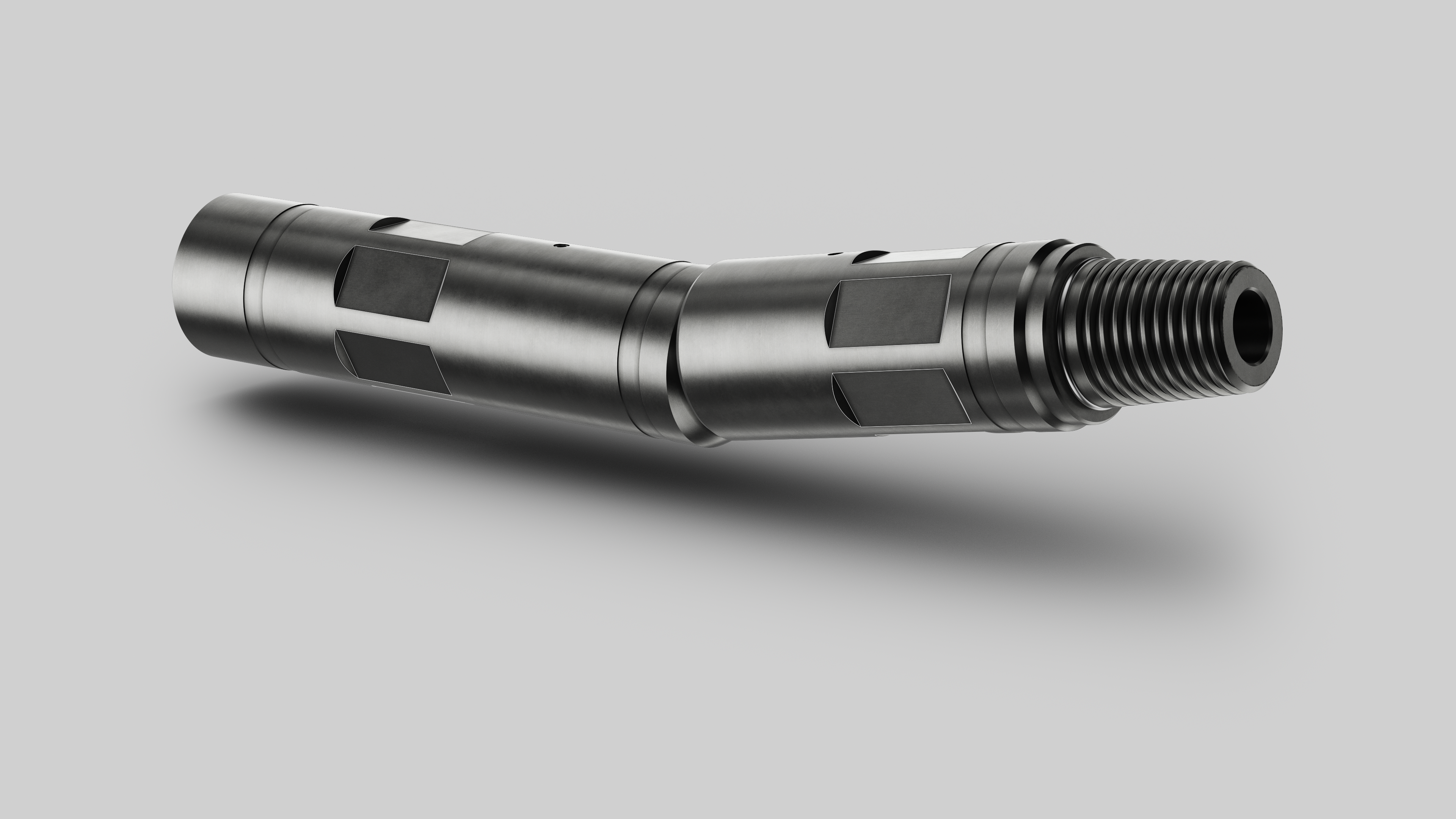

The LiMAR Flo-Thru Knuckle Joint is designed to provide a point of flexibility within a Coiled Tubing Bottom Hole Assembly (BHA).
Internal seals on the ball joint provide and maintain a seal between the ID & OD of the Flo-Thru Knuckle Joint. Configuring a Flo-Thru Knuckle Joint within the BHA enables it to pass unrestricted over nipple shoulders, tubing crossovers and other points where a rigid BHA may encounter difficulty.
TOOL APPLICATIONS:
- To provide a point of flexibility within a Coiled Tubing BHA
DESIGN FEATURES & BENEFITS:
- Available in a range of sizes to suit industry standard BHA’s
- 10 degree deflection angle from centre line
- Large thru bore
- Sealing ball joint
- Connection options to suit customer requirements
- Simple, robust design ensuring ease of operation for the end user
- Selected components QPQ treated
- Hexagonal flats for safe make-up & break-out
- Corrosion resistant materials
TECHNICAL DATA
| Assembly Part No | Actual OD | Maximum ID | Make up Length |
| 109-1500-XXX-RX | 1.500" | 0.500" | 10.96" |
| 109-1687-XXX-RX | 1.687" | 0.656" | 11.98" |
| 109-1750-XXX-RX | 1.750" | 0.656" | 12.13" |
| 109-2000-XXX-RX | 2.000" | 0.750" | 11.96" |
| 109-2125-XXX-RX | 2.125" | 0.789" | 13.00" |
| 109-2250-XXX-RX | 2.250" | 0.789" | 13.00" |
| 109-2875-XXX-RX | 2.875" | 1.187" | 15.69" |
| 109-3125-XXX-RX | 3.125" | 1.187" | 15.00" |
XXX - Last 3 digits of part number denotes connection type - Please refer to the connection code data sheet. For additional sizes or further information please contact sales
