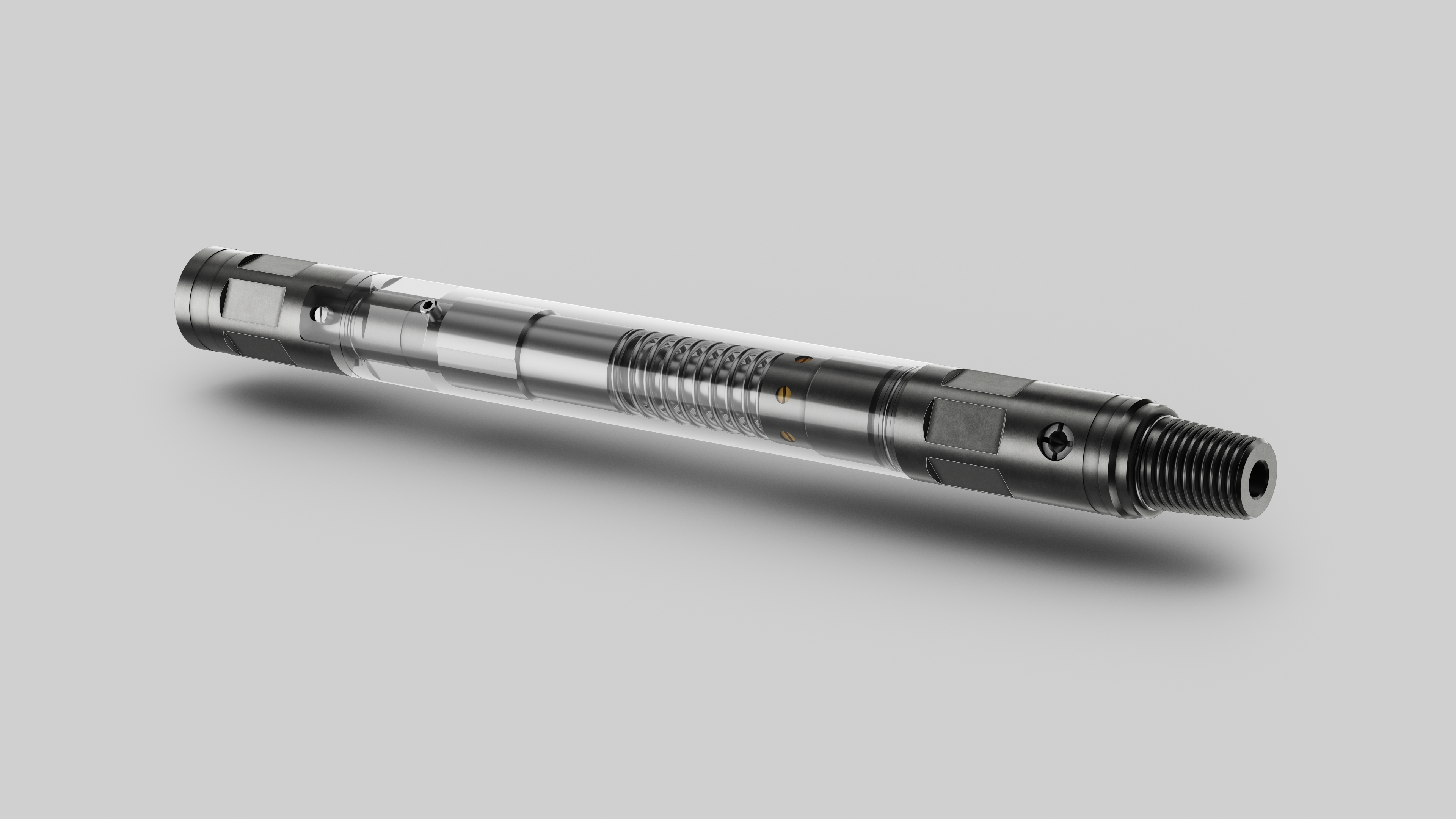

The LiMAR Flo & Tension Disconnect provides a contingency means of releasing and recovering a stuck BHA back to surface without the need for deploying a drop ball. It is primarily used in fishing BHA’s, positioned directly below impact hammers, jars etc...
In conjunction with a pre-determined overpull, the Flo & Tension Disconnect can be released by increasing the pump / flow rate to activate an internal piston to shear out a number of shear screws. The upper section of the assembly will pull free from the lower section leaving a clean internal fish neck profile for subsequent retrieval.
TOOL APPLICATIONS:
- Contingent release point used primarily in fishing BHA’s
- Suitable for use during stiff wireline operations where a drop ball cannot be used
- Ideally suited for use where drop ball deployment is impeded by deviation
DESIGN FEATURES & BENEFITS:
- Torque through feature
- Drop ball not required
- Short make-up length
- Standard Benoil rupture disc port
- Disconnect Sub fitted with standard GS type internal fish neck profile
- Available in a range of sizes to suit industry standard Coiled Tubing diameters and BHA’s
- Simple, robust design ensuring ease of operation for the end user
- Selected components QPQ treated
- Hexagonal flats for safe make-up & break-out
- Connection options to suit customer requirementst
- Corrosion resistant materials
TECHNICAL DATA
| Assembly Part No. | Actual OD | Maximum ID | Disconnect GS Profile | Make up Length |
| 149-1687-XXX-RX | 1.687" | 0.500" | 1-1/2" | 20.48" |
| 149-1750-XXX-RX | 1.750" | 0.500" | 1-1/2" | 20.48" |
| 149-1780-XXX-RX | 1.780" | 0.500" | 1-1/2" | 20.48" |
| 149-2125-XXX-RX | 2.125" | 0.625" | 2" | 22.32" |
| 149-2250-XXX-RX | 2.250" | 0.625" | 2" | 22.32" |
| 149-2875-XXX-RX | 2.875" | 1.000" | 2-1/2" | 28.77" |
XXX - Last 3 digits of part number denotes connection type - Please refer to the connection code data sheet. For additional sizes or further information please contact sales
